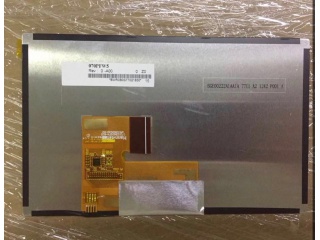

| Part Number | HSD070PFW5-A00 |
| Mark | HannStar |
| Gréisst | 7.0 |
| Applikatioun | Pad & Tablet |
| Opléisung | 1024×600 |
| Zesummesetzung | LCM , a-Si TFT-LCD |
| Hellegkeet | |
| CR | 1000:1 |
| Faarwen | 16.7M |
| Géigeliicht | 3S7P WLED , 10K hours , With LED Driver |
| Interface | MIPI |
| Fabrikant beschwéiert | HannStar |
| Modell Numm | HSD070PFW5-A00 |
| Écran Gréisst | 7.0 inch |
| Écran Typ | LCM , a-Si TFT-LCD |
| Pixel Zuel | 1024(RGB)×600 (WSVGA) 169PPI |
| Arrangement | RGB Vertical Stripe |
| aktiv Beräich (mm) | 153.6 × 90 (H×V) |
| Kontur (mm) | 161.16 × 100.97 × 5.04 (H×V×D) |
| Bezel Beräich (mm) | - |
| Behandlung | Hard coating |
| luminance | 550 cd/m² (Typ.) |
| Kontrast Verhältnis | 1000 : 1 (Typ.) (TM) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10) |
| Äntwert | 13/15 (Typ.)(Tr/Td) ms |
| gutt Vue op | Symmetry |
| Aarbecht Modus | IPS Pro, Normally Black, Transmissive |
| Faarfdéift | 16.7M 50% NTSC |
| mass | 75.0/85.0g (Typ./Max.) |
| benotzt fir | Pad & Tablet |
| Erfrëschungsrate | 60Hz |
| touchscreen | Without |
| Signal Typ | MIPI (4 data lanes) , 40 pins Connector |
| Spannungsversuergung | 1.8/3.3/10.7/17/-10V (Typ.)(VDD1/VDD2/AVDD/VGH/VGL) |
| max. Bewäertungen | Storage Temp.: -20 ~ 65 °C Operating Temp.: -10 ~ 60 °C |
