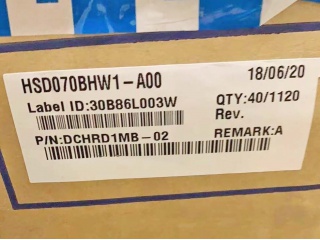

| Part Number | HSD070BHW1-A00 |
| Mark | HannStar |
| Gréisst | 7.0 |
| Applikatioun | Pad & Tablet |
| Opléisung | 720×1280 |
| Zesummesetzung | CELL , a-Si TFT-LC |
| Hellegkeet | |
| CR | 800:1 |
| Faarwen | 16.7M |
| Géigeliicht | No B/L |
| Interface | |
| Fabrikant beschwéiert | HannStar |
| Écran Gréisst | 7.0 inch |
| Pixel Zuel | 720(RGB)×1280 (WXGA) 210PPI |
| aktiv Beräich (mm) | 86.94 × 154.56 (H×V) |
| luminance | 0 cd/m² |
| Vue Wénkel | 80/80/80/80 (Typ.)(CR≥10) |
| gutt Vue op | Symmetry |
| Glas deck | 0.40+0.40 mm |
| Faarfdéift | 16.7M 70% NTSC |
| mass | - |
| Erfrëschungsrate | - |
| Chauffer ic Lëscht | Built-in COG HX8394-A01, HX8394-B, NT35520, NT35521, OTM1283A, OTM1288A |
| max. Bewäertungen | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| Modell Numm | HSD070BHW1-A00 |
| Écran Typ | CELL , a-Si TFT-LCD |
| Arrangement | RGB Ttilt Stripe |
| Kontur (mm) | 89.94 × 162.56 × 0.8 (H×V×D) |
| Kontrast Verhältnis | 800 : 1 (Typ.) (TM) |
| Äntwert | 10/20 (Typ.)(Tr/Td) ms |
| Aarbecht Modus | IPS Pro, Normally Black, Transmissive |
| transmissivitéit | 4.0% (Typ.)(with Polarizer) |
| benotzt fir | Pad & Tablet |
| touchscreen | Without |
