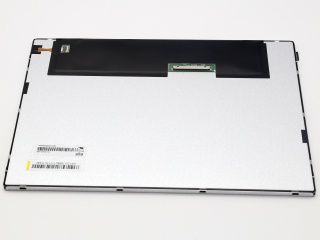

| Part Number | GV122WXM-N80 |
| Mark | BOE |
| Gréisst | 12.2 |
| Applikatioun | Industrial |
| Opléisung | 1280×800 |
| Zesummesetzung | LCM , a-Si TFT-LCD |
| Hellegkeet | |
| CR | 1000:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED , With LED Driver |
| Interface | LVDS |
| Fabrikant beschwéiert | BOE |
| Modell Numm | GV122WXM-N80 |
| Écran Gréisst | 12.2 inch |
| Écran Typ | LCM , a-Si TFT-LCD |
| Pixel Zuel | 1280(RGB)×800 (WXGA) 123PPI |
| Arrangement | RGB Vertical Stripe |
| aktiv Beräich (mm) | 262.656 × 164.16 (H×V) |
| Kontur (mm) | 278 × 184 × 9.91 (H×V×D) |
| Bezel Beräich (mm) | 264.66 × 166.66 (H×V) |
| Behandlung | - |
| luminance | 450 cd/m² (Typ.) |
| Kontrast Verhältnis | 1000 : 1 (Typ.) (TM) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10) |
| Äntwert | 30 (Typ.)(Tr+Td); 45 (Typ.)(G to G) ms |
| gutt Vue op | Symmetry |
| Aarbecht Modus | ADS, Normally Black, Transmissive |
| Faarfdéift | 16.7M 50% NTSC |
| mass | 564g (Typ.) |
| benotzt fir | Industrial |
| Erfrëschungsrate | 60Hz |
| touchscreen | Without |
| Signal Typ | LVDS (1 ch, 8-bit) , 30 pins Connector |
| Spannungsversuergung | 3.3V (Typ.) |
| max. Bewäertungen | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
