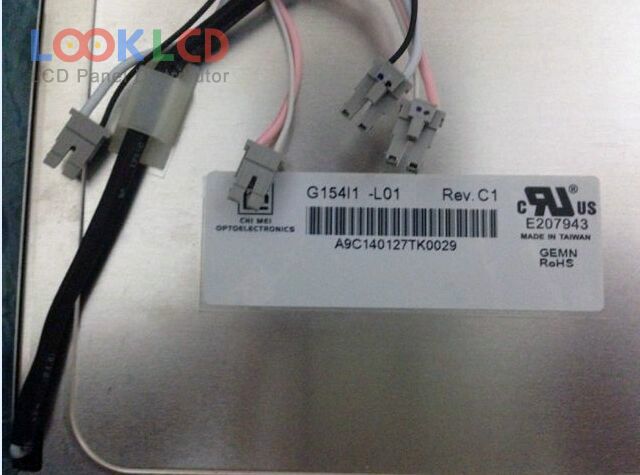

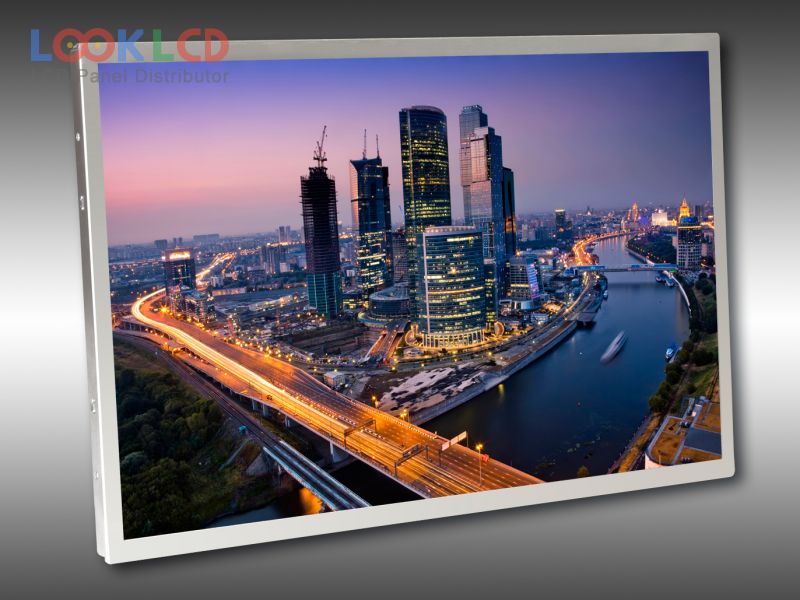

| Part Number | G154I1-L01 |
| Mark | Innolux |
| Gréisst | 15.4 |
| Applikatioun | CNS |
| Opléisung | 1280×800 |
| Zesummesetzung | LCM |
| Hellegkeet | 700 |
| CR | 700:1 |
| Faarwen | 262K |
| Géigeliicht | CCFL |
| Interface | LVDS |
| Panel Mark | CMO |
| Panel Modell | G154I1-L01 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 15.4 inch |
| Resolutioun | 1280(RGB)×800 , WXGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 331.2×207 mm |
| skizzéieren | 352×230×16.3 mm |
| Uewerfläch | Glare (Haze 0%), Hard coating (3H), Antireflection |
| Hellegkeet | 700 cd/m² (Typ.) |
| Kontrast Verhältnis | 700:1 (Typ.) |
| weisen Faarwen | 262K (6-bit) |
| Äntwert Zäit | 5/11 (Typ.)(Tr/Td) |
| Vue Wénkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 4 pcsCCFLWithout Driver |
| Signal Interface | LVDS (1 ch, 6-bit), 20 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | CNS |
| B154EW02 V0 | AUO | 15.4 | 1280×800 |
| B154EW02 V6 | AUO | 15.4 | 1280×800 |
| B154PW02 V3 | AUO | 15.4 | 1440×900 |
| CLAA154WP05A | CPT | 15.4 | 1440×900 |
| G154I1-L01 | Innolux | 15.4 | 1280×800 |
| G154I1-LE1 | Innolux | 15.4 | 1280×800 |
| G154IJE-L02 | Innolux | 15.4 | 1280×800 |
| LP154WE2-TLA8 | LG Display | 15.4 | 1680×1050 |
| LTN154MT02-W01 | Samsung | 15.4 | 1680×1050 |
| NL128102BC23-03 | NLT | 15.4 | 1280×1024 |
| 70WVW1A | SII | 7.0 | 800×480 |
| 70WVW2T | SII | 7.0 | 800×480 |
| CLAA069LB06 CW | CPT | 7.0 | 800×480 |
| DLC0700CZG-6 | Other | 7.0 | 800×480 |
| LB070WQ6-TD01 | LG Display | 7.0 | 400×234 |
| LB080WV4-A1 | LG Display | 8.0 | 800×480 |
| LQ049B5DG02 | SHARP | 4.9 | 320×96 |
| LQ065T9DR51U | SHARP | 6.5 | 400×240 |
| LQ080Y5CGQ2 | SHARP | 8.0 | 800×480 |
| TFD58W22MW | TOSHIBA | 5.8 | 400×234 |
