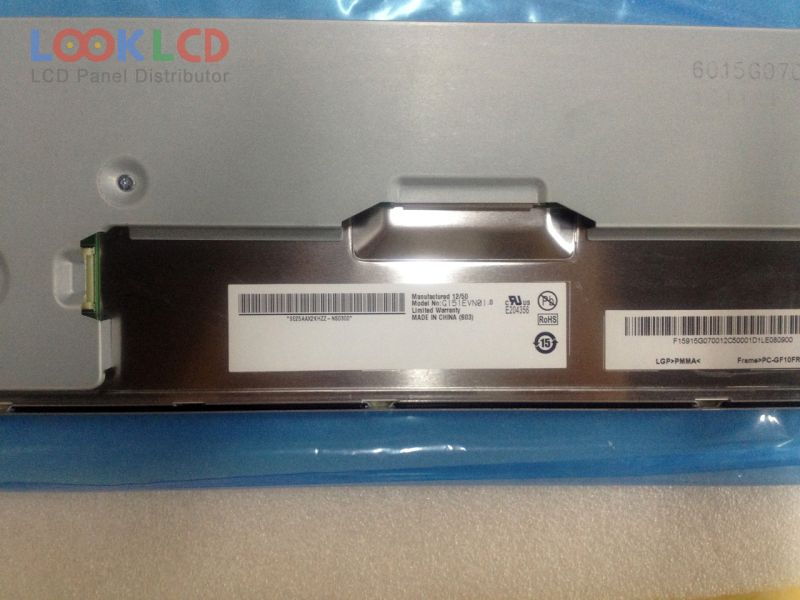

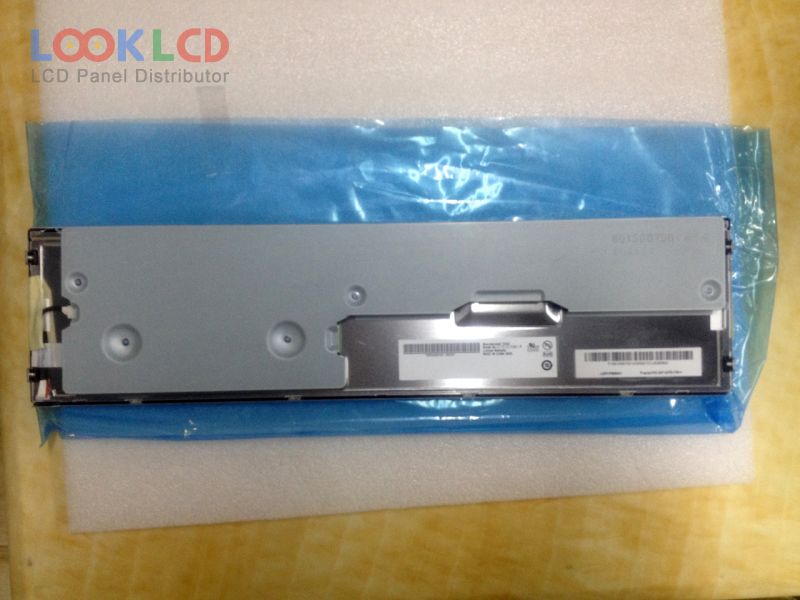

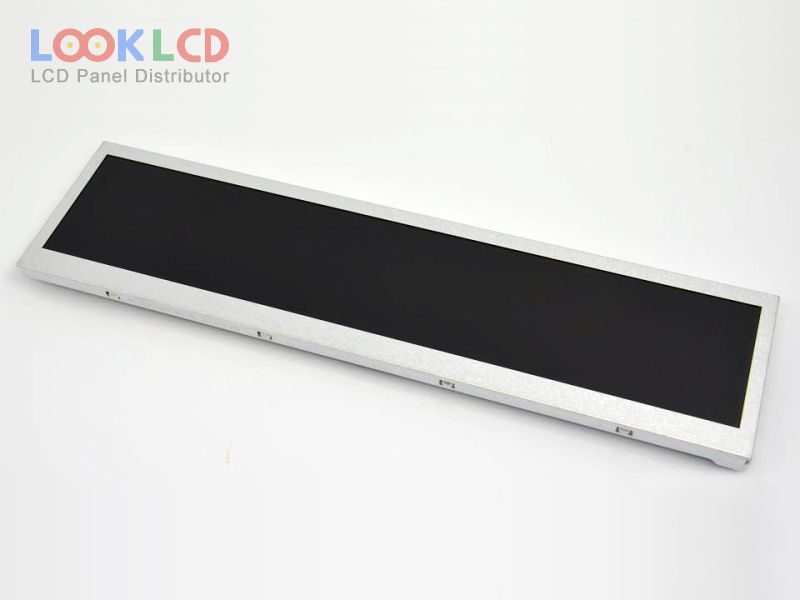

| Part Number | G151EVN01.0 |
| Mark | AUO |
| Gréisst | 15.1 |
| Applikatioun | IA |
| Opléisung | 1280×248 |
| Zesummesetzung | LCM |
| Hellegkeet | 300 |
| CR | 2000:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | AUO |
| Panel Modell | G151EVN01.0 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 15.1 inch(1/4 cut of 19.0") |
| Resolutioun | 1280(RGB)×248 |
| Display Modus | MVA, Normally Black, Transmissive |
| aktiv Beräich | 376.32×72.91 mm |
| skizzéieren | 396×100.8 mm |
| Uewerfläch | Antiglare, Hard coating (3H) |
| Hellegkeet | 300 cd/m² (Typ.) |
| Kontrast Verhältnis | 2000:1 (Typ.) |
| weisen Faarwen | 16.7M (8-bit), CIE193170% |
| Äntwert Zäit | 15/5 (Typ.)(Tr/Td); 8 (Typ.)(G to G) |
| Vue Wénkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | WLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pins |
| Input Volt | 5.0V (Typ.) |
| Applikatioun | IA |
