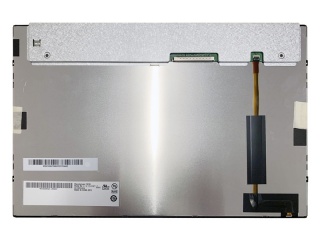

| Part Number | G121EAN01.4 |
| Mark | AUO |
| Gréisst | 12.1 |
| Applikatioun | Industrial Medical I |
| Opléisung | 1280×800 |
| Zesummesetzung | LCM , a-Si TFT-LCD |
| Hellegkeet | |
| CR | 1000:1 |
| Faarwen | 262K/16.2M |
| Géigeliicht | WLED , 30K hours , With LED Driver |
| Interface | LVDS |
| Fabrikant beschwéiert | AUO |
| Écran Gréisst | 12.1 inch |
| Pixel Zuel | 1280(RGB)×800 (WXGA) 124PPI |
| aktiv Beräich (mm) | 261.12 × 163.2 (H×V) |
| Bezel Beräich (mm) | 264.22 × 168.12 (H×V) |
| luminance | 300 cd/m² (Typ.) |
| Vue Wénkel | 89/89/89/89 (Typ.)(CR≥10) |
| gutt Vue op | Symmetry |
| Faarfdéift | 262K/16.2M 99% sRGB |
| mass | 480g (Max.) |
| Erfrëschungsrate | 60Hz |
| Signal Typ | LVDS (1 ch, 6/8-bit) , 30 pins Connector |
| Spannungsversuergung | 3.3V (Typ.) |
| max. Bewäertungen | Storage Temp.: -30 ~ 85 °C Operating Temp.: -30 ~ 85 °C |
| Modell Numm | G121EAN01.4 |
| Écran Typ | LCM , a-Si TFT-LCD |
| Arrangement | RGB Vertical Stripe |
| Kontur (mm) | 278 × 184 × 9.64 (H×V×D) |
| Behandlung | Antiglare, Hard coating (3H) |
| Kontrast Verhältnis | 1000 : 1 (Typ.) (TM) |
| Äntwert | 25 (Typ.)(Tr+Td) ms |
| Aarbecht Modus | AHVA, Normally Black, Transmissive |
| benotzt fir | Industrial Medical Imaging |
| touchscreen | Without |
