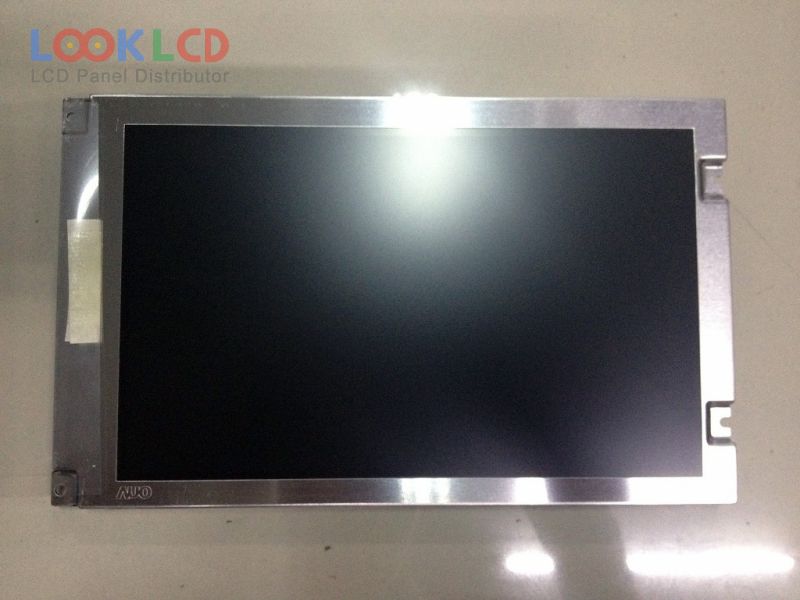

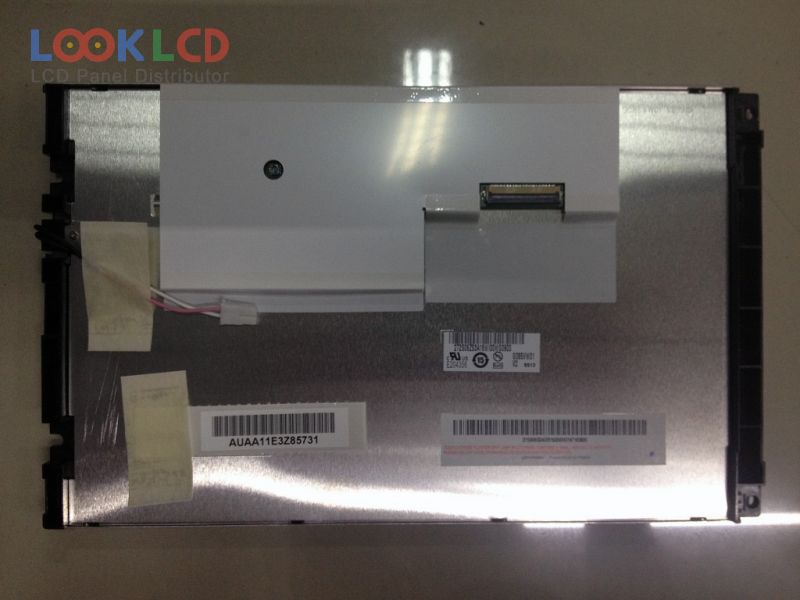

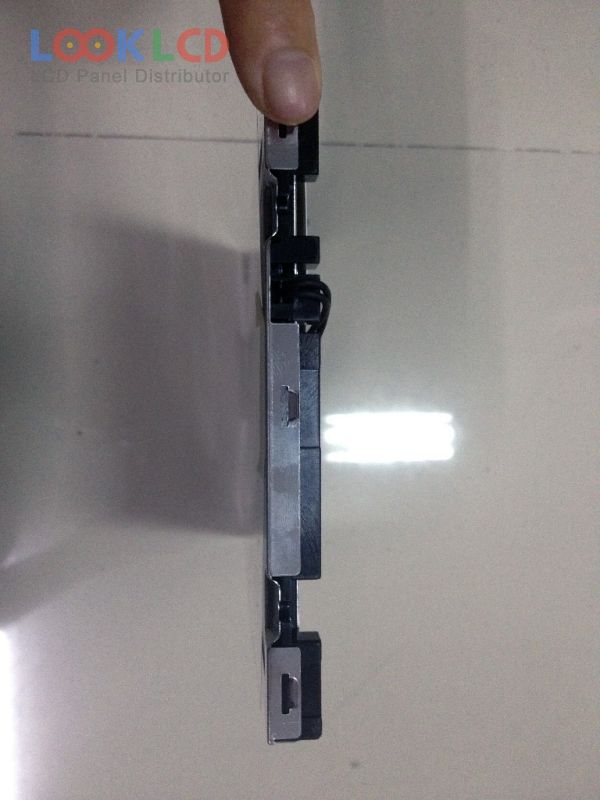

| Part Number | G085VW01 V2 |
| Mark | AUO |
| Gréisst | 8.5 |
| Applikatioun | IA |
| Opléisung | 800×480 |
| Zesummesetzung | LCM |
| Hellegkeet | 200 |
| CR | 500:1 |
| Faarwen | 262K |
| Géigeliicht | CCFL |
| Interface | TTL |
| Panel Mark | AUO |
| Panel Modell | G085VW01 V2 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 8.5 inch |
| Resolutioun | 800(RGB)×480 , WVGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 184.8×110.88 mm |
| skizzéieren | 222.7×135.4×12.5 mm |
| Uewerfläch | Antiglare, Hard coating (3H) |
| Hellegkeet | 200 cd/m² (Typ.) |
| Kontrast Verhältnis | 500:1 (Typ.) |
| weisen Faarwen | 262K (6-bit), CIE193150% |
| Äntwert Zäit | 20/10 (Typ.)(Tr/Td) |
| Vue Wénkel | 80/80/80/60 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 1 pcsCCFLWithout Driver |
| Signal Interface | Parallel RGB (1 ch, 6-bit), 40 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | IA |
| A050BTS30R0 | Aptus | 5.0 | 480×480 |
| AA121TD01-DE3 | Mitsubishi | 12.1 | 1280×800 |
| EL320.240.36 HB | Lumineq | 5.7 | 320×240 |
| G150XTN01.0 | AUO | 15.0 | 1024×768 |
| KCS077VG2EA-A43 | Kyocera | 7.7 | 640×480 |
| LQ060B3DW01 | SHARP | 6.0 | 768×128 |
| LQ64D343R | SHARP | 6.4 | 640×480 |
| NL6448BC20-08E | NLT | 6.5 | 640×480 |
| SH320240C | Other | 5.7 | 320×240 |
| TLX-1741-C3M | TOSHIBA | 5.4 | 240×128 |
