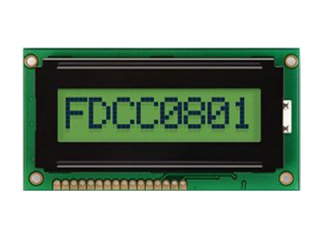

| Part Number | FC0801A04-RNNYBW-16LE |
| Mark | Fordata |
| Gréisst | 2.3 |
| Applikatioun | Instruments & Me |
| Opléisung | 5×8 |
| Zesummesetzung | STN-LCD, LCM |
| Hellegkeet | |
| CR | 10:1 |
| Faarwen | Monochrome |
| Géigeliicht | No |
| Interface | |
| Mark | Fordata |
| Modell | FC0801A04-RNNYBW-16LE |
| diagonal Gréisst | 2.3 inch |
| Typ | STN-LCD, LCM |
| char format | 5×8 dots |
| Schrëftgréisst | 6.45×10.75 mm |
| Schrëftgréisst | 7.15×10.75 mm |
| aktiv Beräich | 56.5(H)×10.75(V) mm |
| kontur dim. | 84(H)×44(V) ×10(D) mm |
| bezel Beräich | 61.0(H)×15.8(V) mm |
| Behandlung | - |
| luminance | - |
| Kontrast Verhältnis | 10:1 (Typ.) (TM) |
| Vue Richtung | 6 o'clock |
| Äntwert Zäit | 150/150 (Typ.)(Tr/Tf) |
| Vue Wénkel | - |
| Betribssystemer Modus | STN, Yellow/Green (Positive), Reflective |
| Ënnerstëtzung Faarf | Monochrome |
| Liichtquell | No B/L |
| Gewiicht | - |
| entworf fir | Instruments & Meters |
| Frame Taux | - |
| Touch Panel | Without |
| Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
