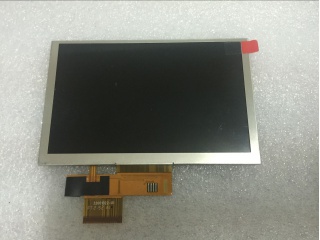

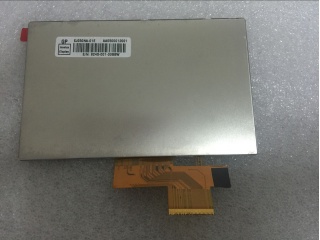

| Part Number | EJ050NA-01E |
| Mark | Chimei Innolux |
| Gréisst | 5.0 |
| Applikatioun | Automotive Display P |
| Opléisung | 800×480 |
| Zesummesetzung | a-Si TFT-LCD, LCM |
| Hellegkeet | |
| CR | 500:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | Parallel |
| Panel Mark | Chimei Innolux |
| Panel Modell | EJ050NA-01E |
| Panel Gréisst | 5.0" |
| Panel Typ | a-Si TFT-LCD, LCM |
| Resolutioun | 800(RGB)×480, WVGA, 188PPI |
| Pixel Format | RGB Vertical Stripe |
| Affichage Beräich | 108(W)×64.8(H) mm |
| bezel Ouverture | - |
| Hellegkeet | - |
| Kontrast Verhältnis | 500:1 (Typ.) (TM) |
| Vue Wénkel | 70/70/50/70 (Typ.)(CR≥10) |
| Display Modus | TN, Normally White, Transmissive |
| beschte Vue op | 6 o'clock |
| Äntwert Zäit | 10/15 (Typ.)(Tr/Td) |
| weisen Faarwen | 16.7M |
| Lampe Typ | WLED |
| Frequenz | 60Hz |
| Touchscreens | - |
| Panel Gewiicht | - |
| Applikatioun | Automotive Display Portable Navigation MP3 PMP |
| Signal Interface | Parallel RGB (1 ch, 8-bit) |
| Ëmwelt | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
