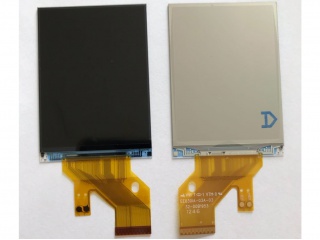

| Part Number | EE030IA-03A |
| Mark | Chimei Innolux |
| Gréisst | 3.0 |
| Applikatioun | Digital Still Camera |
| Opléisung | 640×480 |
| Zesummesetzung | CELL , a-Si TFT-LC |
| Hellegkeet | |
| CR | 800:1 |
| Faarwen | 16.7M |
| Géigeliicht | No B/L , No Driver |
| Interface | YUV |
| Fabrikant beschwéiert | Chimei Innolux |
| Écran Gréisst | 3.0 inch |
| Pixel Zuel | 640×480(RGB) (VGA) 270PPI |
| aktiv Beräich (mm) | 60 × 45 (H×V) |
| Bezel Beräich (mm) | - |
| luminance | 0 cd/m² |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10) |
| gutt Vue op | Symmetry |
| Glas deck | 0.25+0.25 mm |
| Faarfdéift | 16.7M 60% NTSC |
| mass | 5.89g (Typ.) |
| Erfrëschungsrate | 60Hz |
| Signal Typ | YUV (16-bit) , 51 pins FPC |
| Spannungsversuergung | 1.8/3.1V (VDDIO/VDD) |
| max. Bewäertungen | Storage Temp.: -30 ~ 80 °C Operating Temp.: -10 ~ 70 °C |
| Modell Numm | EE030IA-03A |
| Écran Typ | CELL , a-Si TFT-LCD |
| Arrangement | RGB Horizontal Stripe |
| Kontur (mm) | 69 × 49 × 0.8 (H×V×D) |
| Behandlung | Hard coating |
| Kontrast Verhältnis | 800 : 1 (Typ.) (TM) |
| Äntwert | 35 (Typ.)(Tr+Td) ms |
| Aarbecht Modus | IPS, Normally Black, Transmissive |
| transmissivitéit | 4.5% (Typ.)(with Polarizer) |
| benotzt fir | Digital Still Camera Digital Video Camera |
| touchscreen | Without |
