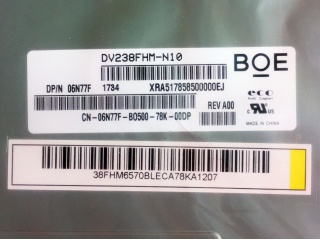

| Part Number | DV238FHM-N10 |
| Mark | BOE |
| Gréisst | 23.8 |
| Applikatioun | Industrial Digital S |
| Opléisung | 1920×1080 |
| Zesummesetzung | a-Si TFT-LCD, LCM |
| Hellegkeet | |
| CR | 1000:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | |
| Mark | BOE |
| Modell | DV238FHM-N10 |
| diagonal Gréisst | 23.8 inch |
| Typ | a-Si TFT-LCD, LCM |
| Pixel Format | 1920(RGB)×1080 [FHD] 92PPI |
| Configuratioun | RGB Vertical Stripe |
| aktiv Beräich | 527.04(H)×296.46(V) mm |
| kontur dim. | 543(H)×317.4(V) ×11.4(D) mm |
| bezel Beräich | 530.2(H)×299.6(V) mm |
| Behandlung | Antiglare (Haze 25%), Hard coating (3H) |
| luminance | 450 cd/m² (Min.) |
| Kontrast Verhältnis | 1000:1 (Typ.) (TM) |
| Vue Richtung | Symmetry |
| Äntwert Zäit | 14 (Typ.)(G to G) |
| Vue Wénkel | 89/89/89/89 (Typ.)(CR≥10) |
| Betribssystemer Modus | ADS, Normally Black, Transmissive |
| Ënnerstëtzung Faarf | 16.7M 99% sRGB |
| Liichtquell | WLED [4 strings] , 30K hours , W/O Driver |
| Gewiicht | 2.39Kgs (Typ.) |
| entworf fir | Industrial Digital Signage |
| Frame Taux | 60Hz |
| Touch Panel | Without |
| Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| G238HAN01.0 | AUO | 23.8 | 1920×1080 |
| LM238WF1-SLE1 | LG Display | 23.8 | 1920×1080 |
| LM238WF1-SLK1 | LG Display | 23.8 | 1920×1080 |
| LM238WF2-SSG2 | LG Display | 23.8 | 1920×1080 |
| LM238WF2-SSK1 | LG Display | 23.8 | 1920×1080 |
| LM238WF4-SSA1 | LG Display | 23.8 | 1920×1080 |
| LM238WR1-SLA1 | LG Display | 23.8 | 3840×2160 |
| LM238WR2-SLA1 | LG Display | 23.8 | 3840×2160 |
| M238HAN01.0 | AUO | 23.8 | 1920×1080 |
| M238HVN01.0 | AUO | 23.8 | 1920×1080 |
