| Part Number | COM70H7M44UTC |
| Mark | Ortustech |
| Gréisst | 7.0 |
| Applikatioun | Industrial Outdoor H |
| Opléisung | 800×480 |
| Zesummesetzung | LCM , a-Si TFT-LCD |
| Hellegkeet | |
| CR | 900:1 |
| Faarwen | 262K/16.7M |
| Géigeliicht | 7S2P WLED , 50K hours , No Driver |
| Interface | LVDS |
| Fabrikant beschwéiert | Ortustech |
| Modell Numm | COM70H7M44UTC |
| Écran Gréisst | 7.0 inch |
| Écran Typ | LCM , a-Si TFT-LCD |
| Pixel Zuel | 800(RGB)×480 (WVGA) 133PPI |
| Arrangement | RGB Vertical Stripe |

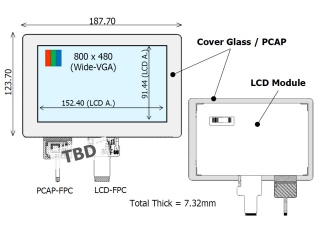

| aktiv Beräich (mm) | 152.4 × 91.44 (H×V) |
| Kontur (mm) | 187.7 × 123.7 (H×V×D) |
| Bezel Beräich (mm) | - |
| Behandlung | Hard coating (3H) |
| luminance | 900 cd/m² (Typ.) |
| Kontrast Verhältnis | 900 : 1 (Typ.) (TM) |
| Vue Wénkel | 80/80/80/80 (Min.)(CR≥10) |
| Äntwert | 50 (Typ.)(Tr+Tf) ms |
| gutt Vue op | Symmetry |
| Aarbecht Modus | VA, Normally Black, Transflective |
| Faarfdéift | 262K/16.7M 50% NTSC |
| mass | TBD |
| benotzt fir | Industrial Outdoor High Brightness |
| Erfrëschungsrate | 60Hz |
| touchscreen | PCAP |
| Signal Typ | LVDS (1 ch, 6/8-bit) , 30 pins FPC |
| Spannungsversuergung | 3.3V (Typ.) |
| max. Bewäertungen | Storage Temp.: -40 ~ 85 °C Operating Temp.: -30 ~ 80 °C ; Vibration Level: 6.8G (66.64 m/s²) |
| BP070WS1-102 | BOE | 7.0 | 1024×600 |
| CLAA069LB02CW | CPT | 7.0 | 800×480 |
| CLAA070LJ01CW | CPT | 7.0 | 800×480 |
| LD070WS2-SL04 | LG Display | 7.0 | 1024×600 |
| LD070WS2-SL07 | LG Display | 7.0 | 1024×600 |
| LMS700KF15 | Samsung | 7.0 | 800×480 |
| LQ070Y3LG4A | SHARP | 7.0 | 800×480 |
| NL8048AC19-13 | NLT | 7.0 | 800×480 |
| TM070DDH03 | Tianma | 7.0 | 1024×600 |
| TM070DDH07 | Tianma | 7.0 | 1024×600 |
