| Part Number | COM70H7M24ULC |
| Mark | Ortustech |
| Gréisst | 7.0 |
| Applikatioun | Industrial Outdoor H |
| Opléisung | 800×480 |
| Zesummesetzung | a-Si TFT-LCD, LCM |
| Hellegkeet | |
| CR | 700:13:1 |
| Faarwen | 262K/16.7M |
| Géigeliicht | WLED |
| Interface | LVDS |
| Mark | Ortustech |
| Modell | COM70H7M24ULC |
| diagonal Gréisst | 7.0 inch |
| Typ | a-Si TFT-LCD, LCM |
| Pixel Format | 800(RGB)×480 [WVGA] 133PPI |
| Configuratioun | RGB Vertical Stripe |

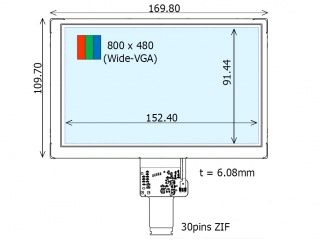

| aktiv Beräich | 152.4(H)×91.44(V) mm |
| kontur dim. | 169.8(H)×109.7(V) ×6.11(D) mm |
| bezel Beräich | - |
| Behandlung | Hard coating (3H) |
| luminance | 790 cd/m² (Typ.) |
| Kontrast Verhältnis | 700:1 (Typ.) (TM) 3:1 (Typ.) (RF) |
| Vue Richtung | Symmetry |
| Äntwert Zäit | 60/40 (Max.)(Tr/Td) |
| Vue Wénkel | 80/80/80/80 (Min.)(CR≥10) |
| Betribssystemer Modus | VA, Normally Black, Transflective |
| Ënnerstëtzung Faarf | 262K/16.7M 50% NTSC |
| Liichtquell | WLED [8S2P] , 100K hours , W/O Driver |
| Gewiicht | 170g (Typ.) |
| entworf fir | Industrial Outdoor High Brightness Automotive Display |
| Frame Taux | 60Hz |
| Touch Panel | Without |
| Interface Typ | LVDS (1 ch, 6/8-bit) , 30 pins FPC |
| Stroumversuergung | 3.3V (Typ.) |
| Ëmwelt | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 6.8G (66.64 m/s²) |
