| Part Number | COM57T5N07RSC |
| Mark | Ortustech |
| Gréisst | 5.7 |
| Applikatioun | Industrial |
| Opléisung | 640×480 |
| Zesummesetzung | a-Si TFT-LCD , LCM |
| Hellegkeet | |
| CR | 1000:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | |
| Mark | Ortustech |
| diagonal Gréisst | 5.7 inch |
| Pixel Format | 640(RGB)×480 [VGA] 141PPI |
| aktiv Beräich | 115.2(H)×86.4(V) mm |
| bezel Beräich | 117.2(H)×86.4(V) mm |
| luminance | 500 cd/m² (Typ.) |
| Vue Richtung | Symmetry |
| Vue Wénkel | 80/80/80/80 (Typ.)(CR≥10) |
| Ënnerstëtzung Faarf | 262K 50% NTSC |
| Gewiicht | TBD |
| Frame Taux | 60Hz |
| Modell | COM57T5N07RSC |
| Typ | a-Si TFT-LCD , LCM |
| Configuratioun | RGB Vertical Stripe |

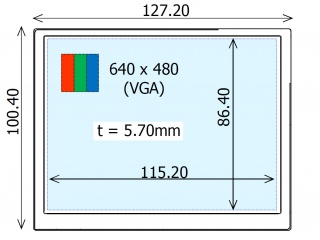

| kontur dim. | 127.2(H)×100.4(V) ×6(D) mm |
| Behandlung | - |
| Kontrast Verhältnis | 1000:1 (Typ.) (TM) |
| Äntwert Zäit | 30 (Typ.)(Tr+Td) |
| Betribssystemer Modus | IPS-FFS, Normally Black, Transmissive |
| Liichtquell | WLED [5S3P] , 50K hours , W/O Driver |
| entworf fir | Industrial |
| Touch Panel | Without |
| CLAA057VA02CW | CPT | 5.7 | 640×480 |
| FX050700DSCWDG12 | Data Image | 5.7 | |
| H572DAN01.2 | AUO | 5.7 | 1080×1920 |
| KCS057QV1AJ-G20 | Kyocera | 5.7 | 320×240 |
| KCS057QV1AJ-G39 | Kyocera | 5.7 | 320×240 |
| KG057QV1DB-G00 | Kyocera | 5.7 | 320×240 |
| LM32004 | SHARP | 5.7 | 320×240 |
| LQ057Q3DC03 | SHARP | 5.7 | 320×240 |
| LV057JC111 | Innolux | 5.7 | 640×480 |
| PD057VT3 | E Ink | 5.7 | 640×480 |
