| Part Number | COM48H4N77ULC |
| Mark | Ortustech |
| Gréisst | 4.8 |
| Applikatioun | Handheld & PDA |
| Opléisung | 720×1280 |
| Zesummesetzung | a-Si TFT-LCD , LCM |
| Hellegkeet | |
| CR | 700:13:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | MIPI |
| Mark | Ortustech |
| diagonal Gréisst | 4.8 inch |
| Pixel Format | 720(RGB)×1280 [WXGA] 309PPI |
| aktiv Beräich | 59.184(H)×105.216(V) mm |
| bezel Beräich | - |
| luminance | 300 cd/m² (Typ.) |
| Vue Richtung | Symmetry |
| Vue Wénkel | 80/80/80/80 (Min.)(CR≥10) |
| Ënnerstëtzung Faarf | 16.7M 50% NTSC |
| Gewiicht | 25.2g (Typ.) |
| Frame Taux | - |
| Interface Typ | MIPI (4 data lanes) , 26 pins Connector |
| Stroumversuergung | 1.9/2.9V (Typ.)(IOVCC/VCC) |
| Ëmwelt | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s²) |
| Modell | COM48H4N77ULC |
| Typ | a-Si TFT-LCD , LCM |
| Configuratioun | RGB Vertical Stripe |

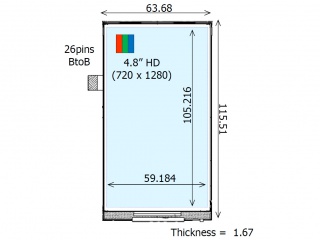

| kontur dim. | 63.68(H)×115.51(V) ×1.87(D) mm |
| Behandlung | Hard coating (2H) |
| Kontrast Verhältnis | 700:1 (Typ.) (TM) 3:1 (Typ.) (RF) |
| Äntwert Zäit | 40/60 (Max.)(Tr/Td) |
| Betribssystemer Modus | VA, Normally Black, Transflective |
| Liichtquell | WLED [9S1P] , 20K hours , W/O Driver |
| entworf fir | Handheld & PDA |
| Touch Panel | Without |
