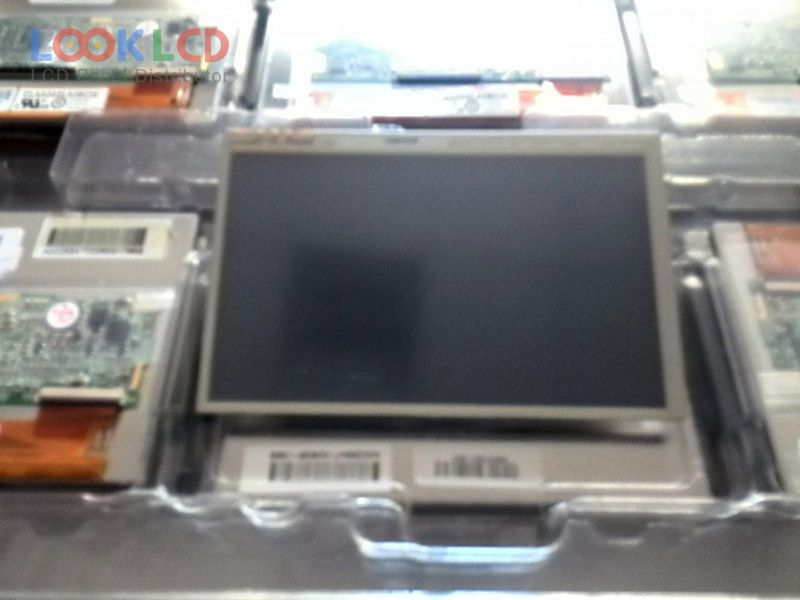

| Part Number | CLAA048LA0BCW |
| Mark | CPT |
| Gréisst | 4.8 |
| Applikatioun | PND |
| Opléisung | 800×480 |
| Zesummesetzung | LCM |
| Hellegkeet | 350 |
| CR | 400:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | TTL |
| Panel Mark | CPT |
| Panel Modell | CLAA048LA0BCW |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 4.8 inch |
| Resolutioun | 800(RGB)×480 , WVGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 103.8×62.28 mm |
| skizzéieren | 114.65×74.7 mm |
| Uewerfläch | Antiglare |
| Hellegkeet | 350 cd/m² (Typ.) |
| Kontrast Verhältnis | 400:1 (Typ.) |
| weisen Faarwen | 16.7M (8-bit) |
| Äntwert Zäit | 20 (Max.)(Tr+Td) |
| Vue Wénkel | 70/70/40/70 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | WLEDEmbedded (LED Driver) |
| Signal Interface | TTL (1 ch, 8-bit), 50 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | PND |
| 35HVE0H | SII | 3.5 | 320×480 |
| AT043TN13 TP | Innolux | 4.3 | 480×272 |
| AT043TN25 V.2 | Innolux | 4.3 | 480×272 |
| GPM782A0 | Giantplus | 3.5 | 320×240 |
| LMS430HF41-004 | Samsung | 4.3 | 480×272 |
| LMS480KC01 | Samsung | 4.8 | 800×480 |
| LMS500HF04-002 | Samsung | 5.0 | 480×272 |
| LQ035Q1DG02 | SHARP | 3.5 | 320×240 |
| LQ043T3DX0A | SHARP | 4.3 | 480×272 |
| LR043JC211 | Innolux | 4.3 | 480×272 |
