| Part Number | COM35H3P58ULC |
| Mark | Ortustech |
| Gréisst | 3.5 |
| Applikatioun | Handheld & PDA |
| Opléisung | 320×240 |
| Zesummesetzung | a-Si TFT-LCD, LCM |
| Hellegkeet | |
| CR | 700:12:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | Parallel |
| Mark | Ortustech |
| Modell | COM35H3P58ULC |
| diagonal Gréisst | 3.5 inch |
| Typ | a-Si TFT-LCD, LCM |
| Pixel Format | 320(RGB)×240 [QVGA] 115PPI |
| Configuratioun | RGB Vertical Stripe |

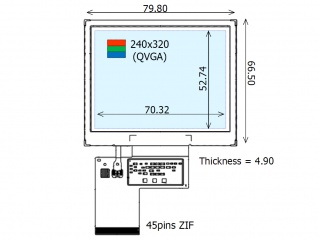

| aktiv Beräich | 70.32(H)×52.74(V) mm |
| kontur dim. | 79.8(H)×66.5(V) ×5.1(D) mm |
| bezel Beräich | - |
| Behandlung | Hard coating (2H) |
| luminance | 600 cd/m² (Typ.) |
| Kontrast Verhältnis | 700:1 (Typ.) (TM) 2:1 (Typ.) (RF) |
| Vue Richtung | Symmetry |
| Äntwert Zäit | 60/40 (Max.)(Tr/Td) |
| Vue Wénkel | 80/80/80/80 (Min.)(CR≥10) |
| Betribssystemer Modus | VA, Normally Black, Transflective |
| Ënnerstëtzung Faarf | 16.7M 50% NTSC |
| Liichtquell | WLED [3S2P] , 50K hours , W/O Driver |
| Gewiicht | TBD |
| entworf fir | Handheld & PDA |
| Frame Taux | 60Hz |
| Touch Panel | Without |
| Interface Typ | Parallel RGB (1 ch, 8-bit) , 45 pins FPC |
| Stroumversuergung | 3.3V (Typ.) |
| Ëmwelt | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C |
