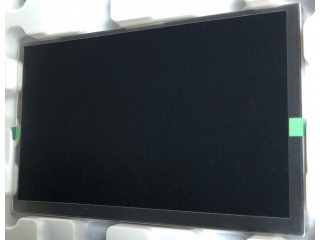

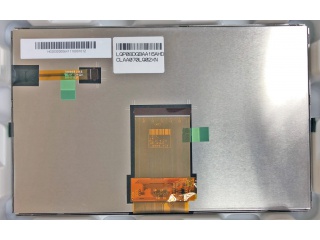

| Part Number | CLAA070LQ02 XN |
| Mark | CPT |
| Gréisst | 7.0 |
| Applikatioun | Automotive Display |
| Opléisung | 800×480 |
| Zesummesetzung | LCM, a-Si TFT-LCD |
| Hellegkeet | |
| CR | 900:1 |
| Faarwen | 262K/16.7M |
| Géigeliicht | 7S2P WLED , 30K hours , No Driver |
| Interface | LVDS |
| Fabrikant beschwéiert | CPT |
| Modell Numm | CLAA070LQ02 XN |
| Écran Gréisst | 7.0 inch |
| Écran Typ | LCM, a-Si TFT-LCD |
| Pixel Zuel | 800(RGB)×480 (WVGA) 133PPI |
| Arrangement | RGB Vertical Stripe |
| aktiv Beräich (mm) | 152.4 × 91.44 (H×V) |
| Kontur (mm) | 165 × 104 × 7.3 (H×V×D) |
| Bezel Beräich (mm) | 154.4 × 93.44 (H×V) |
| Behandlung | Antiglare (Haze 25%) |
| luminance | 760 cd/m² (Typ.) |
| Kontrast Verhältnis | 900 : 1 (Typ.) (TM) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10) |
| Äntwert | 25 (Typ.)(Tr+Tf) ms |
| gutt Vue op | Symmetry |
| Aarbecht Modus | HFFS, Normally Black, Transmissive |
| Faarfdéift | 262K/16.7M 70% NTSC |
| mass | 175g (Typ.) |
| benotzt fir | Automotive Display |
| Erfrëschungsrate | 60Hz |
| touchscreen | Without |
| Signal Typ | LVDS (1 ch, 6/8-bit) , FPC 60 pins |
| Spannungsversuergung | 3.3/13.0/20.0/-6.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| max. Bewäertungen | Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²) |
