| Part Number | B156ZAN03.5 |
| Mark | AUO |
| Gréisst | 15.6 |
| Applikatioun | Laptop |
| Opléisung | 3840×2160 |
| Zesummesetzung | LCM , LTPS TFT-LCD |
| Hellegkeet | |
| CR | 1000:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED , 15K hours , With LED Driver |
| Interface | eDP |
| Fabrikant beschwéiert | AUO |

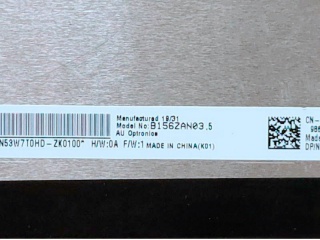

| Modell Numm | B156ZAN03.5 (AUO35EB) |
| Écran Gréisst | 15.6 inch |
| Écran Typ | LCM , LTPS TFT-LCD |
| Pixel Zuel | 3840(RGB)×2160 (UHD) 283PPI |
| Arrangement | RGB Vertical Stripe |
| aktiv Beräich (mm) | 344.218 × 193.622 (H×V) |
| Kontur (mm) | 349.22 × 214.21 × 2.6 (H×V×D) |
| Bezel Beräich (mm) | - |
| Behandlung | Antiglare |
| luminance | 300 cd/m² (Typ.) |
| Kontrast Verhältnis | 1000 : 1 (Typ.) (TM) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10) |
| Äntwert | 30 (Typ.)(Tr+Td) ms |
| gutt Vue op | Symmetry |
| Aarbecht Modus | AHVA, Normally Black, Transmissive |
| Faarfdéift | 16.7M 100% sRGB |
| kontur Form | Slim (PCBA Flat, T≤3.2mm) |
| benotzt fir | Laptop |
| Erfrëschungsrate | 60Hz |
| touchscreen | Without |

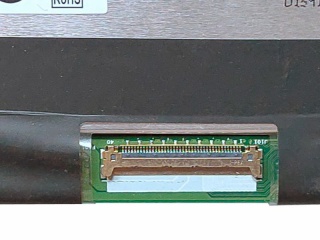

| Signal Typ | eDP (4 Lanes) , eDP1.3 , 40 pins Connector |
| Spannungsversuergung | 3.3V (Typ.) |
| max. Bewäertungen | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
