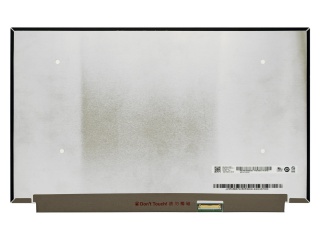

| Part Number | B156ZAN03.2 |
| Mark | AUO |
| Gréisst | 15.6 |
| Applikatioun | Laptop |
| Opléisung | 3840×2160 |
| Zesummesetzung | LTPS TFT-LCD, LCM |
| Hellegkeet | |
| CR | 1200:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | eDP |
| Mark | AUO |
| Modell | B156ZAN03.2 (AUO32EB) |
| diagonal Gréisst | 15.6 inch |
| Typ | LTPS TFT-LCD, LCM |
| Pixel Format | 3840(RGB)×2160 [UHD] 283PPI |
| Configuratioun | RGB Vertical Stripe |
| aktiv Beräich | 344.218(H)×193.622(V) mm |
| kontur dim. | 350.66(H)×216.45(V) ×2.6(D) mm |
| bezel Beräich | - |
| Behandlung | Antiglare |
| luminance | 400 cd/m² (Typ.) |
| Kontrast Verhältnis | 1200:1 (Typ.) (TM) |
| Vue Richtung | Symmetry |
| Äntwert Zäit | 30 (Typ.)(Tr+Td) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10) |
| Betribssystemer Modus | AHVA, Normally Black, Transmissive |
| Ënnerstëtzung Faarf | 16.7M 100% Adobe RGB |
| Liichtquell | WLED , 15K hours , With LED Driver |
| Form Stil | Slim (PCBA Flat, T≤3.2mm) |
| entworf fir | Laptop |
| Frame Taux | 60Hz |
| Touch Panel | Without |

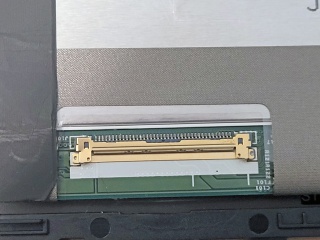

| Interface Typ | eDP (4 Lanes) , eDP1.3 , 40 pins Connector |
| Stroumversuergung | 3.3V (Typ.) |
| Ëmwelt | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
