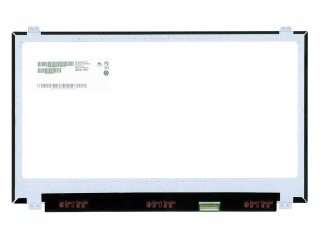

| Part Number | B156HTN05.2 |
| Mark | AUO |
| Gréisst | 15.6 |
| Applikatioun | Laptop |
| Opléisung | 1920×1080 |
| Zesummesetzung | LCM, a-Si TFT-LCD |
| Hellegkeet | |
| CR | 700:1 |
| Faarwen | 262K |
| Géigeliicht | WLED , 15K hours , With LED Driver |
| Interface | |
| Fabrikant beschwéiert | AUO |
| Modell Numm | B156HTN05.2 (AUO25ED) |
| Écran Gréisst | 15.6 inch |
| Écran Typ | LCM, a-Si TFT-LCD |
| Pixel Zuel | 1920(RGB)×1080 (FHD) 141PPI |
| Arrangement | RGB Vertical Stripe |
| aktiv Beräich (mm) | 344.16 × 193.59 (H×V) |
| Kontur (mm) | 359.5 × 223.8 × 3.2 (H×V×D) |
| Bezel Beräich (mm) | - |
| Behandlung | Antiglare |
| luminance | 400 cd/m² (Typ.) |
| Kontrast Verhältnis | 700 : 1 (Typ.) (TM) |
| Vue Wénkel | 70/70/60/60 (Typ.)(CR≥10) |
| Äntwert | 5 (Typ.)(Tr+Td) ms |
| gutt Vue op | 6 o'clock |
| Aarbecht Modus | TN, Normally White, Transmissive |
| Faarfdéift | 262K 72% NTSC |
| kontur Form | Slim (PCBA Flat, T≤3.2mm) |
| benotzt fir | Laptop |
| Erfrëschungsrate | 120Hz |
| touchscreen | Without |
| Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| B156HAN01.2 | AUO | 15.6 | 1920×1080 |
| B156HAT01.0 | AUO | 15.6 | 1920×1080 |
| B156HTB01.0 | AUO | 15.6 | 1920×1080 |
| B156HTN01.1 | AUO | 15.6 | 1920×1080 |
| B156HTN03.3 | AUO | 15.6 | 1920×1080 |
| B156HW01 V0 | AUO | 15.6 | 1920×1080 |
| B156HW01 V1 | AUO | 15.6 | 1920×1080 |
| B156HW01 V7 | AUO | 15.6 | 1920×1080 |
| B156HW02 V1 | AUO | 15.6 | 1920×1080 |
| B156HW03 V0 | AUO | 15.6 | 1920×1080 |
