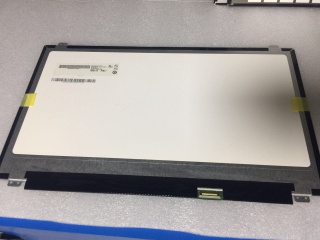

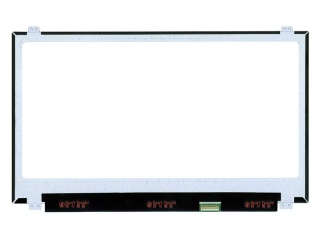

| Part Number | B156HTN05.1 |
| Mark | AUO |
| Gréisst | 15.6 |
| Applikatioun | Laptop |
| Opléisung | 1920×1080 |
| Zesummesetzung | a-Si TFT-LCD, LCM |
| Hellegkeet | |
| CR | 700:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | |
| Mark | AUO |
| Modell | B156HTN05.1 (AUO51ED) |
| diagonal Gréisst | 15.6 inch |
| Typ | a-Si TFT-LCD, LCM |
| Pixel Format | 1920(RGB)×1080 [FHD] 141PPI |
| Configuratioun | RGB Vertical Stripe |
| aktiv Beräich | 344.16(H)×193.59(V) mm |
| kontur dim. | 359.5(H)×223.8(V) ×3.2(D) mm |
| bezel Beräich | - |
| Behandlung | Antiglare |
| luminance | 400 cd/m² (Typ.) |
| Kontrast Verhältnis | 700:1 (Typ.) (TM) |
| Vue Richtung | 6 o'clock |
| Äntwert Zäit | 5 (Typ.)(Tr+Td) |
| Vue Wénkel | 70/70/60/60 (Typ.)(CR≥10) |
| Betribssystemer Modus | TN, Normally White, Transmissive |
| Ënnerstëtzung Faarf | 262K 72% NTSC |
| Liichtquell | WLED , 16K hours , With LED Driver |
| Form Stil | Slim (PCBA Flat, T≤3.2mm) |
| entworf fir | Laptop |
| Frame Taux | 120Hz |
| Touch Panel | Without |
| Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
