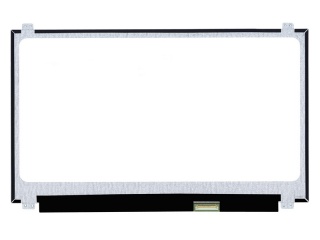

| Part Number | B156HAN02.2 HWAA |
| Mark | AUO |
| Gréisst | 15.6 |
| Applikatioun | Laptop |
| Opléisung | 1920×1080 |
| Zesummesetzung | a-Si TFT-LCD , LCM |
| Hellegkeet | |
| CR | 700:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | eDP |
| Panel Mark | AUO |
| Panel Gréisst | 15.6" |
| Resolutioun | 1920(RGB)×1080, FHD, 141PPI |
| Affichage Beräich | 344.16(W)×193.59(H) mm |
| Kontur Gréisst | 350.56(W)×223.6(H) ×3.2(D) mm |
| Hellegkeet | 250 cd/m² (Typ.) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10) |
| beschte Vue op | Symmetry |
| weisen Faarwen | 262K 46% NTSC |
| Frequenz | 60Hz |
| Form Stil | Slim (PCBA Flat, T≤3.2mm) |
| Signal Interface | eDP (2 Lanes) , eDP1.2 , 40 pins Connector |
| Input Volt | 3.3V (Typ.) |
| Ëmwelt | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| Panel Modell | B156HAN02.2 HWAA (AUO22ED) |
| Panel Typ | a-Si TFT-LCD , LCM |
| Pixel Format | RGB Vertical Stripe |
| bezel Ouverture | - |
| Uewerfläch | Antiglare |
| Kontrast Verhältnis | 700:1 (Typ.) (TM) |
| Display Modus | AHVA, Normally Black, Transmissive |
| Äntwert Zäit | 25 (Typ.)(Tr+Td) |
| Lampe Typ | WLED , 15K hours , With LED Driver |
| Touchscreens | Without |
| Applikatioun | Laptop |
| B156HAN01.2 | AUO | 15.6 | 1920×1080 |
| B156HTB01.0 | AUO | 15.6 | 1920×1080 |
| G156HTD01.0 | AUO | 15.6 | 1920×1080 |
| LP156WD1-TLD5 | LG Display | 15.6 | 1600×900 |
| LP156WF1-TLF3 | LG Display | 15.6 | 1920×1080 |
| LP156WF1-TLF4 | LG Display | 15.6 | 1920×1080 |
| LP156WH3-TLT2 | LG Display | 15.6 | 1366×768 |
| LTN156AT20-P01 | Samsung | 15.6 | 1366×768 |
| LTN156AT36-D01 | Samsung | 15.6 | 1366×768 |
| TMS156WX1-01TB | Tianma | 15.6 | 1366×768 |
