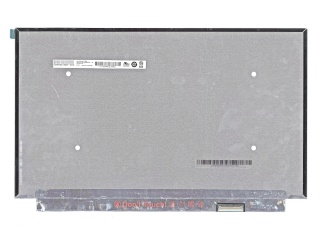

| Part Number | B140ZAN01.0 |
| Mark | AUO |
| Gréisst | 14.0 |
| Applikatioun | Laptop |
| Opléisung | 3840×2160 |
| Zesummesetzung | a-Si TFT-LCD , LCM |
| Hellegkeet | |
| CR | 1200:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | eDP |
| Mark | AUO |
| diagonal Gréisst | 14.0 inch |
| Pixel Format | 3840(RGB)×2160 [UHD] 315PPI |
| aktiv Beräich | 309.31(H)×173.98(V) mm |
| bezel Beräich | - |
| luminance | 400 cd/m² (Typ.) |
| Vue Richtung | Symmetry |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10) |
| Ënnerstëtzung Faarf | 16.7M 72% NTSC |
| Form Stil | Slim (PCBA Flat, T≤3.2mm) |
| Frame Taux | 60Hz |
| Interface Typ | eDP (4 Lanes) , eDP1.4 , 40 pins Connector |
| Stroumversuergung | 3.3V (Typ.) |
| Ëmwelt | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Modell | B140ZAN01.0 (AUO103B) |
| Typ | a-Si TFT-LCD , LCM |
| Configuratioun | RGB Vertical Stripe |
| kontur dim. | 315.01(H)×199.04(V) ×2.4(D) mm |
| Behandlung | Antiglare, Hard coating (3H) |
| Kontrast Verhältnis | 1200:1 (Typ.) (TM) |
| Äntwert Zäit | 35 (Typ.)(Tr+Td) |
| Betribssystemer Modus | AHVA, Normally Black, Transmissive |
| Liichtquell | WLED , 15K hours , With LED Driver |
| entworf fir | Laptop |
| Touch Panel | Without |
