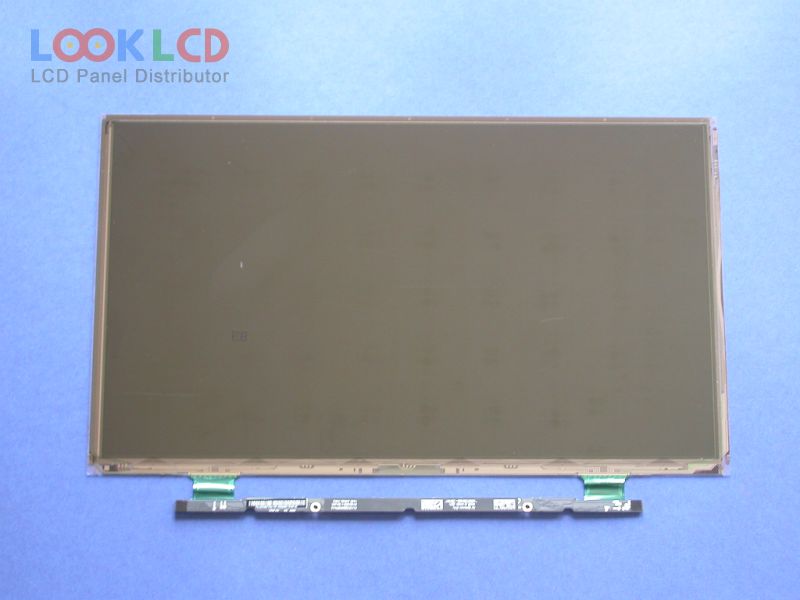

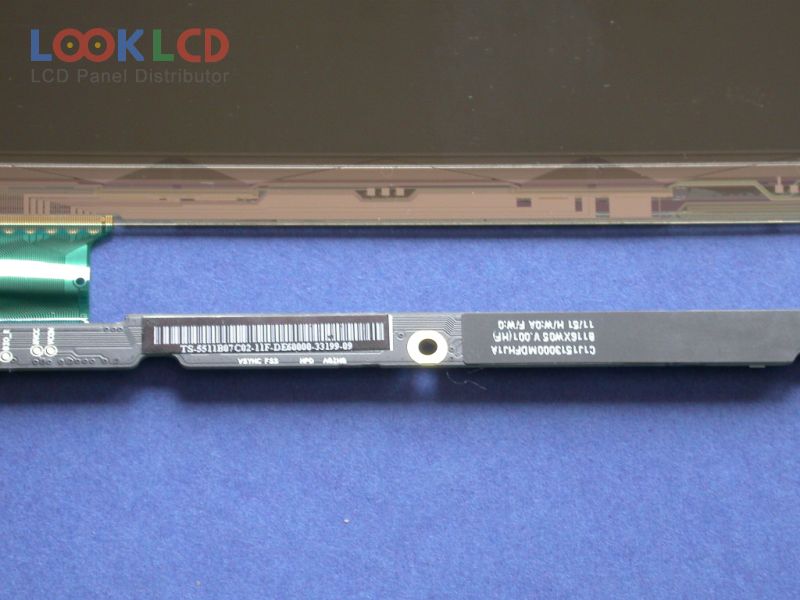

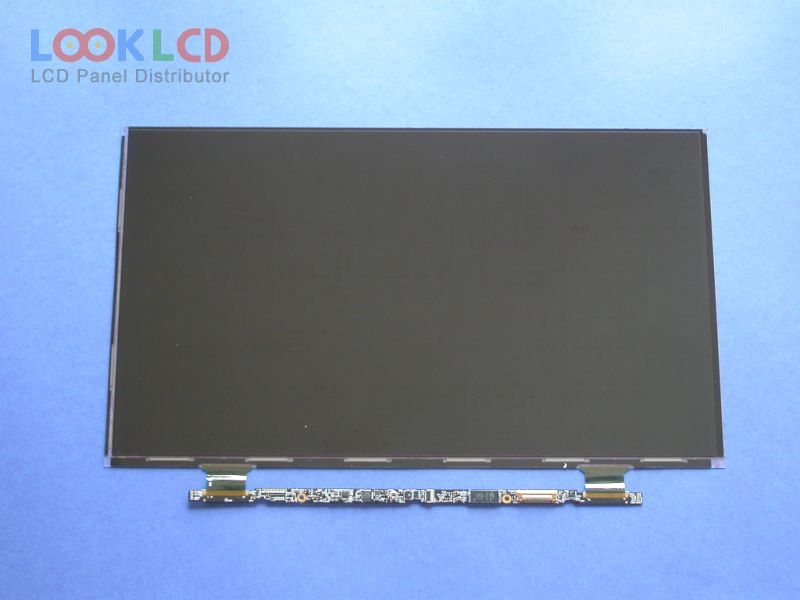

| Part Number | B116XW05 V001 |
| Mark | AUO |
| Gréisst | 11.6 |
| Applikatioun | NOPC |
| Opléisung | 1366×768 |
| Zesummesetzung | CELL |
| Hellegkeet | 0 |
| CR | 700:1 |
| Faarwen | 262K |
| Géigeliicht | No B/L |
| Interface | eDP |
| Panel Mark | AUO |
| Panel Modell | B116XW05 V001 |
| Panel Typ | a-Si TFT-LCD , CELL |
| Panel Gréisst | 11.6 inch |
| Resolutioun | 1366(RGB)×768 , WXGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 256.125×144 mm |
| skizzéieren | 289.34×155.9 mm |
| Uewerfläch | Glare (Haze 0%), Hard coating (4H) |
| Glas Déift | 0.30+0.30 mm |
| transmissivitéit | 5.3% (Typ.)(with Polarizer) |
| Kontrast Verhältnis | 700:1 (Typ.) |
| weisen Faarwen | 262K (6-bit), CIE193145% |
| Äntwert Zäit | 16 (Typ.)(Tr+Td) |
| Vue Wénkel | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Signal Interface | eDP (1 Lane), 30 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | NOPC |
| B116HAN03.1 | AUO | 11.6 | 1920×1080 |
| B116XW01 V0 | AUO | 11.6 | 1366×768 |
| B116XW02 V0 | AUO | 11.6 | 1366×768 |
| B116XW02 V1 | AUO | 11.6 | 1366×768 |
| B116XW03 V0 | AUO | 11.6 | 1366×768 |
| B116XW03 V1 | AUO | 11.6 | 1366×768 |
| B116XW05 V0 | AUO | 11.6 | 1366×768 |
| B116XW05 V001 | AUO | 11.6 | 1366×768 |
| B116XW05 V004 | AUO | 11.6 | 1366×768 |
| NT116WHM-N31 | BOE | 11.6 | 1366×768 |
| B116XTN01.0 HW1A | AUO | 11.6 | 1366×768 |
| B116XW05 V001 | AUO | 11.6 | 1366×768 |
| CLAA101NB03A | CPT | 10.1 | 1024×600 |
| CLAA101NC05 | CPT | 10.1 | 1024×600 |
| CLAA102NC01CW | CPT | 10.2 | 1024×600 |
| LP089WS1-TLA1 | LG Display | 8.9 | 1024×600 |
| LTN116AT02-D01 | Samsung | 11.6 | 1366×768 |
| M101MWW4 R0 | IVO | 10.1 | 1024×600 |
| N089L6-L02 | Innolux | 8.9 | 1024×600 |
| N101LGE-L41 | Innolux | 10.1 | 1024×600 |
