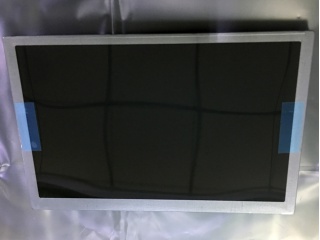

| Part Number | AT070MP11 |
| Mark | Mitsubishi |
| Gréisst | 7.0 |
| Applikatioun | Industrial Outdoor H |
| Opléisung | 800×480 |
| Zesummesetzung | LCM , a-Si TFT-LCD |
| Hellegkeet | |
| CR | 1000:1 |
| Faarwen | 262K/16.7M |
| Géigeliicht | WLED , 100K hours , No Driver |
| Interface | LVDS |
| Fabrikant beschwéiert | Mitsubishi |
| Modell Numm | AT070MP11 |
| Écran Gréisst | 7.0 inch |
| Écran Typ | LCM , a-Si TFT-LCD |
| Pixel Zuel | 800(RGB)×480 (WVGA) 133PPI |
| Arrangement | RGB Vertical Stripe |
| aktiv Beräich (mm) | 152.4 × 91.44 (H×V) |
| Kontur (mm) | 169.8 × 109.7 × 9.4 (H×V×D) |
| Bezel Beräich (mm) | 154.4 × 93.5 (H×V) |
| Behandlung | Antiglare, Hard coating (3H) |
| luminance | 1300 cd/m² (Typ.) |
| Kontrast Verhältnis | 1000 : 1 (Typ.) (TM) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10) |
| Äntwert | 4/12 (Typ.)(Tr/Td) ms |
| gutt Vue op | Symmetry |
| Aarbecht Modus | SWV, Normally Black, Transmissive |
| Faarfdéift | 262K/16.7M 50% NTSC |
| mass | 200g |
| benotzt fir | Industrial Outdoor High Brightness Automotive Display |
| Erfrëschungsrate | 60Hz |
| touchscreen | Without |
| Signal Typ | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Spannungsversuergung | 3.3V (Typ.) |
| max. Bewäertungen | Storage Temp.: -40 ~ 85 °C Operating Temp.: -40 ~ 85 °C ; Vibration Level: 6.8G (66.64 m/s²) |
