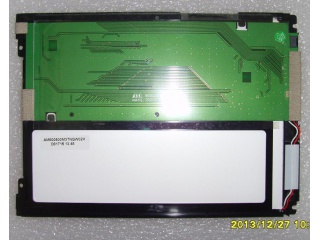

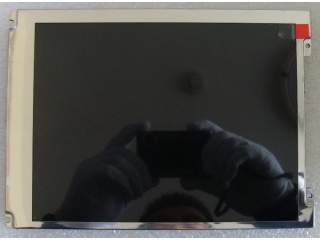

| Part Number | AM-800600M3TNQW-02H |
| Mark | AMPIRE |
| Gréisst | 8.4 |
| Applikatioun | Industrial |
| Opléisung | 800×600 |
| Zesummesetzung | LCM , a-Si TFT-LCD |
| Hellegkeet | |
| CR | 600:1 |
| Faarwen | 262K |
| Géigeliicht | 12S4P WLED , 50K hours , With LED Driver |
| Interface | LVDS |
| Fabrikant beschwéiert | AMPIRE |
| Modell Numm | AM-800600M3TNQW-02H |
| Écran Gréisst | 8.4 inch |
| Écran Typ | LCM , a-Si TFT-LCD |
| Pixel Zuel | 800(RGB)×600 (SVGA) 119PPI |
| Arrangement | RGB Vertical Stripe |
| aktiv Beräich (mm) | 170.4 × 127.8 (H×V) |
| Kontur (mm) | 203 × 145.5 × 10.4 (H×V×D) |
| Bezel Beräich (mm) | 174.15 × 131.2 (H×V) |
| Behandlung | - |
| luminance | 350 cd/m² (Typ.) |
| Kontrast Verhältnis | 600 : 1 (Typ.) (TM) |
| Vue Wénkel | 75/75/60/70 (Typ.)(CR≥10) |
| Äntwert | 8 (Typ.)(Tr+Td) ms |
| gutt Vue op | - |
| Aarbecht Modus | TN, Normally White, Transmissive |
| Faarfdéift | 262K 70% NTSC |
| mass | 280g |
| benotzt fir | Industrial |
| Erfrëschungsrate | 60Hz |
| touchscreen | Without |
| Signal Typ | LVDS (1 ch, 6-bit) , 20 pins Connector |
| Spannungsversuergung | 3.3V (Typ.) |
| max. Bewäertungen | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
