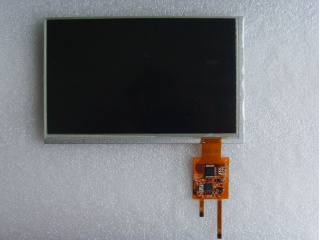

| Part Number | AM-800480RBTMQW-TA1H-A |
| Mark | AMPIRE |
| Gréisst | 7.0 |
| Applikatioun | Industrial |
| Opléisung | 800×480 |
| Zesummesetzung | a-Si TFT-LCD, LCM |
| Hellegkeet | |
| CR | 400:1 |
| Faarwen | 262K |
| Géigeliicht | 3S10P |
| Interface | LVDS |
| Panel Mark | AMPIRE |
| Panel Modell | AM-800480RBTMQW-TA1H-A |
| Panel Gréisst | 7.0" |
| Panel Typ | a-Si TFT-LCD, LCM |
| Resolutioun | 800(RGB)×480, WVGA, 133PPI |
| Pixel Format | RGB Vertical Stripe |
| Affichage Beräich | 152.4(W)×91.44(H) mm |
| bezel Ouverture | 155.3(W)×94.3(H) mm |
| Kontur Gréisst | 165(W)×104.44(H) ×8.06(D) mm |
| Uewerfläch | - |
| Hellegkeet | 255 cd/m² (Typ.) |
| Kontrast Verhältnis | 400:1 (Typ.) (TM) |
| Vue Wénkel | 70/70/70/60 (Typ.)(CR≥10) |
| Display Modus | TN, Normally White, Transmissive |
| beschte Vue op | 6 o'clock |
| Äntwert Zäit | 5/11 (Typ.)(Tr/Td) |
| weisen Faarwen | 262K |
| Lampe Typ | 3S10P WLED , 40K hours , Without Driver |
| Frequenz | 60Hz |
| Touchscreens | PCAP |
| Panel Gewiicht | TBD |
| Applikatioun | Industrial |
| Signal Interface | LVDS (1 ch, 6-bit) , 20 pins Connector |
| Input Volt | 3.3V (Typ.) |
| Ëmwelt | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
