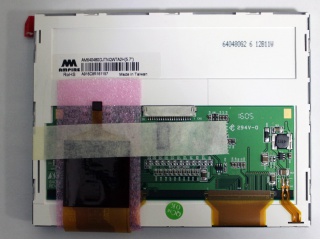

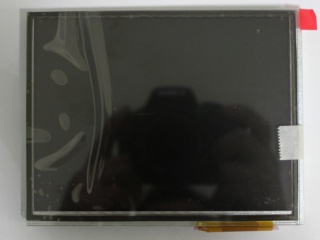

| Part Number | AM-640480GJTNQW-TA2H |
| Mark | AMPIRE |
| Gréisst | 5.7 |
| Applikatioun | Industrial |
| Opléisung | 640×480 |
| Zesummesetzung | a-Si TFT-LCD, LCM |
| Hellegkeet | |
| CR | 250:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | AMPIRE |
| Panel Modell | AM-640480GJTNQW-TA2H |
| Panel Gréisst | 5.7" |
| Panel Typ | a-Si TFT-LCD, LCM |
| Resolutioun | 640(RGB)×480, VGA, 141PPI |
| Pixel Format | RGB Vertical Stripe |
| Affichage Beräich | 115.2(W)×86.4(H) mm |
| bezel Ouverture | - |
| Kontur Gréisst | 127(W)×98.43(H) ×10.88(D) mm |
| Uewerfläch | - |
| Hellegkeet | 425 cd/m² (Typ.) |
| Kontrast Verhältnis | 250:1 (Typ.) (TM) |
| Vue Wénkel | 70/70/50/50 (Typ.)(CR≥10) |
| Display Modus | TN, Normally White, Transmissive |
| beschte Vue op | - |
| Äntwert Zäit | 50 (Typ.)(Tr+Td) |
| weisen Faarwen | 262K 50% NTSC |
| Lampe Typ | WLED , 20K hours , With LED Driver |
| Frequenz | 60Hz |
| Touchscreens | PCAP |
| Panel Gewiicht | - |
| Applikatioun | Industrial |
| Signal Interface | LVDS (1 ch, 8-bit) , 20 pins Connector |
| Input Volt | 3.3V (Typ.) |
| Ëmwelt | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| AM-640480G2TNQW-00H-F | AMPIRE | 5.7 | 640×480 |
| AM-640480G2TNQW-31H | AMPIRE | 5.7 | 640×480 |
| AM-640480G2TNQW-31H-F | AMPIRE | 5.7 | 640×480 |
| AM-640480G2TNQW-T01H-A | AMPIRE | 5.7 | 640×480 |
| AM-640480G4TNQW-A0H | AMPIRE | 5.7 | 640×480 |
| AM-640480G4TNQW-T01H | AMPIRE | 5.7 | 640×480 |
| AM-640480GFTNQW-T01H-L | AMPIRE | 5.7 | 640×480 |
| AM-640480GJTNQW-TA0H | AMPIRE | 5.7 | 640×480 |
| G057VN01 V1 | AUO | 5.7 | 640×480 |
| TM057KDHG03 | Tianma | 5.7 | 320×240 |
