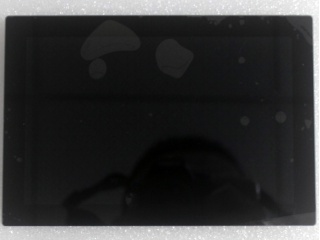

| Part Number | AM-1280800P4TZQW-T21H |
| Mark | AMPIRE |
| Gréisst | 7.0 |
| Applikatioun | Industrial |
| Opléisung | 1280×800 |
| Zesummesetzung | a-Si TFT-LCD, LCM |
| Hellegkeet | |
| CR | 800:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | LVDS |
| Mark | AMPIRE |
| Modell | AM-1280800P4TZQW-T21H |
| diagonal Gréisst | 7.0 inch |
| Typ | a-Si TFT-LCD, LCM |
| Pixel Format | 1280(RGB)×800 [WXGA] 217PPI |
| Configuratioun | RGB Vertical Stripe |
| aktiv Beräich | 149.76(H)×93.6(V) mm |
| kontur dim. | 174(H)×118(V) ×13.63(D) mm |
| bezel Beräich | - |
| Behandlung | Glare (Haze 0%) |
| luminance | 850 cd/m² (Typ.) |
| Kontrast Verhältnis | 800:1 (Typ.) (TM) |
| Vue Richtung | Symmetry |
| Äntwert Zäit | 35 (Typ.)(Tr+Td) |
| Vue Wénkel | 80/80/80/80 (Typ.)(CR≥10) |
| Betribssystemer Modus | SFT, Normally Black, Transmissive |
| Ënnerstëtzung Faarf | 16.7M 50% NTSC |
| Liichtquell | WLED [6S4P] , 50K hours , With LED Driver |
| Gewiicht | - |
| entworf fir | Industrial |
| Frame Taux | 60Hz |
| Touch Panel | PCAP |
| Interface Typ | LVDS (1 ch, 8-bit) , 20 pins Connector |
| Stroumversuergung | 3.3V (Typ.) |
| Ëmwelt | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
