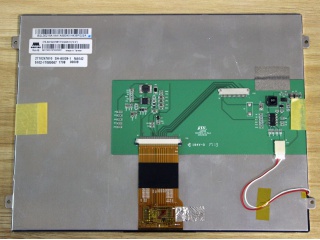

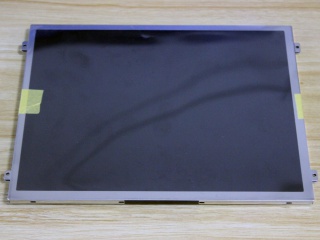

| Part Number | AM-1024768Y2TZQW-A1H |
| Mark | AMPIRE |
| Gréisst | 10.4 |
| Applikatioun | Industrial Outdoor H |
| Opléisung | 1024×768 |
| Zesummesetzung | a-Si TFT-LCD, LCM |
| Hellegkeet | |
| CR | 900:1 |
| Faarwen | 16.2M |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | AMPIRE |
| Panel Modell | AM-1024768Y2TZQW-A1H |
| Panel Gréisst | 10.4" |
| Panel Typ | a-Si TFT-LCD, LCM |
| Resolutioun | 1024(RGB)×768, XGA, 123PPI |
| Pixel Format | RGB Vertical Stripe |
| Affichage Beräich | 211.2(W)×158.4(H) mm |
| bezel Ouverture | 213.2(W)×160.4(H) mm |
| Kontur Gréisst | 236(W)×174.3(H) ×10.4(D) mm |
| Uewerfläch | Antiglare, Hard coating (3H) |
| Hellegkeet | 1000 cd/m² (Typ.) |
| Kontrast Verhältnis | 900:1 (Typ.) (TM) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10) |
| Display Modus | IPS, Normally Black, Transmissive |
| beschte Vue op | Symmetry |
| Äntwert Zäit | 30 (Typ.)(Tr+Td) |
| weisen Faarwen | 16.2M |
| Lampe Typ | WLED , 30K hours , With LED Driver |
| Frequenz | 60Hz |
| Touchscreens | Without |
| Panel Gewiicht | TBD |
| Applikatioun | Industrial Outdoor High Brightness |
| Signal Interface | LVDS (1 ch, 8-bit) , 20 pins Connector |
| Input Volt | 3.3V (Typ.) |
| Ëmwelt | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| AA104VC04 | Mitsubishi | 10.4 | 640×480 |
| AM-1024768M2TMQW-T00H | AMPIRE | 9.7 | 1024×768 |
| AM-1024768MTMQW-00H | AMPIRE | 10.4 | 1024×768 |
| AM-1024768RTNQW-00H | AMPIRE | 12.0 | 1024×768 |
| G104SN03 V4 | AUO | 10.4 | 800×600 |
| LM10V332R | SHARP | 10.4 | 640×480 |
| LTD104KA1S | TOSHIBA | 10.4 | 1024×768 |
| LTM10C209A | TOSHIBA | 10.4 | 640×480 |
| NL6448BC33-50 | NLT | 10.4 | 640×480 |
| NL6448BC33-63D | NLT | 10.4 | 640×480 |
