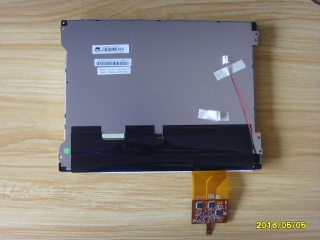

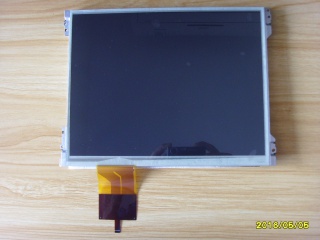

| Part Number | AM-1024768R2TNQW-T00H |
| Mark | AMPIRE |
| Gréisst | 12.1 |
| Applikatioun | Industrial |
| Opléisung | 1024×768 |
| Zesummesetzung | a-Si TFT-LCD , LCM |
| Hellegkeet | |
| CR | 800:1 |
| Faarwen | 262K/16.7M |
| Géigeliicht | 10S5P |
| Interface | LVDS |
| Panel Mark | AMPIRE |
| Panel Gréisst | 12.1" |
| Resolutioun | 1024(RGB)×768, XGA, 105PPI |
| Affichage Beräich | 245.76(W)×184.32(H) mm |
| Kontur Gréisst | 279(W)×209(H) ×11.2(D) mm |
| Hellegkeet | 850 cd/m² (Typ.) |
| Vue Wénkel | 80/80/80/80 (Typ.)(CR≥10) |
| beschte Vue op | - |
| weisen Faarwen | 262K/16.7M |
| Frequenz | 60Hz |
| Panel Gewiicht | - |
| Signal Interface | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Input Volt | 3.3V (Typ.) |
| Ëmwelt | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| Panel Modell | AM-1024768R2TNQW-T00H |
| Panel Typ | a-Si TFT-LCD , LCM |
| Pixel Format | RGB Vertical Stripe |
| bezel Ouverture | - |
| Uewerfläch | - |
| Kontrast Verhältnis | 800:1 (Typ.) (TM) |
| Display Modus | TN, Normally White, Transmissive |
| Äntwert Zäit | 16 (Typ.)(Tr+Td) |
| Lampe Typ | 10S5P WLED , 50K hours , Without Driver |
| Touchscreens | PCAP |
| Applikatioun | Industrial |
