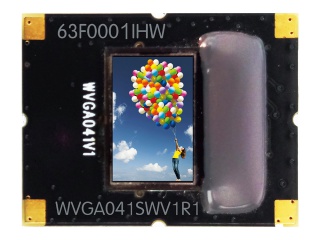

| Part Number | WVGA041SW |
| Mark | OLiGHTEK |
| Gréisst | 0.41 |
| Applikatioun | HMD VR AR |
| Opléisung | 800×480 |
| Zesummesetzung | Si-OLED, OLED |
| Hellegkeet | |
| CR | 10000:1 |
| Faarwen | Grayscale(W) |
| Géigeliicht | self |
| Interface | Parallel/Serial |
| Mark | OLiGHTEK |
| Modell | WVGA041SW |
| diagonal Gréisst | 0.41 inch |
| Typ | Si-OLED, OLED |
| Pixel Format | 800(LCR)×480 [WVGA] 2274PPI |
| Configuratioun | LCR Vertical Stripe |
| aktiv Beräich | 8.9244(H)×5.3724(V) mm |
| kontur dim. | 22(H)×17(V) mm |
| luminance | 100 cd/m² (Typ.) |
| Kontrast Verhältnis | 10000:1 (Min.) (TM) |
| Vue Richtung | - |
| Äntwert Zäit | - |
| Vue Wénkel | - |
| Betribssystemer Modus | - |
| Ënnerstëtzung Faarf | Grayscale(W) |
| Liichtquell | self , 25K hours |
| Gewiicht | 1.80g (Max.) |
| entworf fir | HMD VR AR |
| Frame Taux | 60Hz |
| Touch Panel | Without |
| Interface Typ | Parallel/Serial , 40 pins Connector |
| Stroumversuergung | 1.8/5.0V (Typ.)(V1/V2) |
| Ëmwelt | Operating Temperature: -40 ~ 60 °C ; Storage Temperature: -55 ~ 90 °C |
