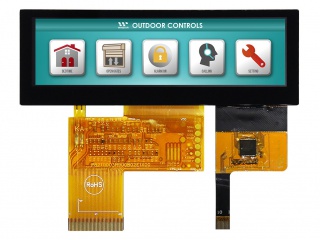

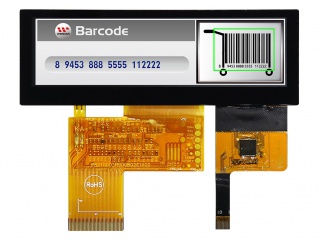

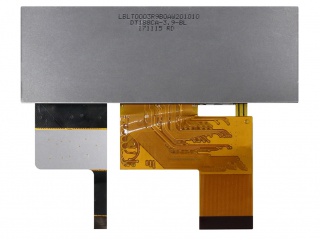

| Part Number | WF39BTLASDNG0 |
| Mark | Winstar |
| Gréisst | 3.9 |
| Applikatioun | Industrial Stretched |
| Opléisung | 480×128 |
| Zesummesetzung | a-Si TFT-LCD, LCM |
| Hellegkeet | |
| CR | 500:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | Parallel |
| Panel Mark | Winstar |
| Panel Modell | WF39BTLASDNG0 |
| Panel Gréisst | 3.9" (1/2 cut of 4.3") |
| Panel Typ | a-Si TFT-LCD, LCM |
| Resolutioun | 480×128(RGB), 128PPI |
| Pixel Format | RGB Horizontal Stripe |
| Affichage Beräich | 95.04(W)×25.34(H) mm |
| bezel Ouverture | 97.04(W)×27.34(H) mm |
| Kontur Gréisst | 105.5(W)×37(H) ×5.63(D) mm |
| Uewerfläch | Glare (Haze 0%) |
| Hellegkeet | 400 cd/m² (Typ.) |
| Kontrast Verhältnis | 500:1 (Typ.) (TM) |
| Vue Wénkel | - |
| Display Modus | TN, Normally White, Transmissive |
| beschte Vue op | 6 o'clock |
| Äntwert Zäit | - |
| weisen Faarwen | 16.7M |
| Lampe Typ | WLED , Without Driver |
| Frequenz | - |
| Touchscreens | PCAP |
| Panel Gewiicht | - |
| Applikatioun | Industrial Stretched Bar LCD |
| Signal Interface | Parallel RGB (1 ch, 8-bit) , 40 pins FPC |
| Input Volt | 3.3V (Typ.) |
| Ëmwelt | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
