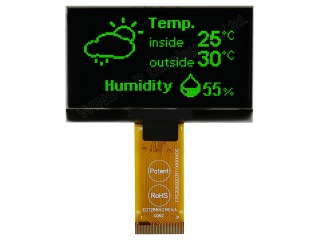

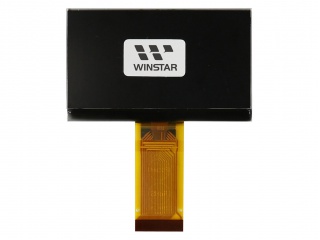

| Part Number | WEO012864GG |
| Mark | Winstar |
| Gréisst | 2.4 |
| Applikatioun | Handheld & PDA I |
| Opléisung | 128×64 |
| Zesummesetzung | PM-OLED, OLED |
| Hellegkeet | |
| CR | |
| Faarwen | Mono(Green) |
| Géigeliicht | self |
| Interface | 8-bit |
| Mark | Winstar |
| Modell | WEO012864GG |
| diagonal Gréisst | 2.4 inch |
| Typ | PM-OLED, OLED |
| Pixel Format | 128×64 59PPI |
| Configuratioun | Rectangle |
| aktiv Beräich | 55.01(H)×27.49(V) mm |
| kontur dim. | 60.5(H)×37(V) ×2.15(D) mm |
| bezel Beräich | 57.01(H)×28.9(V) mm |
| Behandlung | - |
| Vue Richtung | Symmetry |
| Äntwert Zäit | - |
| Vue Wénkel | - |
| Betribssystemer Modus | - |
| Ënnerstëtzung Faarf | Mono(Green) |
| Liichtquell | self |
| Gewiicht | - |
| entworf fir | Handheld & PDA Instruments & Meters |
| Frame Taux | - |
| Touch Panel | Without |
| d-ic detail | COG Built-in SSD1309ZC |
| Interface Typ | 8-bit 6800/8080 parallel, 4-wire SPI, I²C , 30 pins FPC |
| Stroumversuergung | 3.0V (Typ.) |
