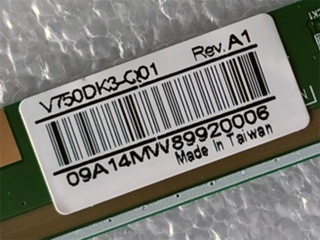

| Part Number | V750DK3-Q01 |
| Mark | Innolux |
| Gréisst | 75 |
| Applikatioun | TV Sets |
| Opléisung | 3840×2160 |
| Zesummesetzung | CELL , a-Si TFT-LC |
| Hellegkeet | |
| CR | 4000:1 |
| Faarwen | 1.07B |
| Géigeliicht | No B/L |
| Interface | V-by-One |
| Fabrikant beschwéiert | Innolux |
| Écran Gréisst | 75 inch |
| Pixel Zuel | 3840(RGB)×2160 (UHD) 59PPI |
| aktiv Beräich (mm) | 1650.24 × 928.26 (H×V) |
| Bezel Beräich (mm) | - |
| luminance | 0 cd/m² |
| Vue Wénkel | 89/89/89/89 (Typ.)(CR≥10) |
| gutt Vue op | Symmetry |
| Glas deck | 0.50+0.50 mm |
| Faarfdéift | 1.07B |
| mass | 4.98±0.25Kgs |
| Erfrëschungsrate | 120Hz |
| Chauffer ic Lëscht | Suggest COF 12 source chips |
| Signal Typ | V-by-One 16 lane , 92 pins Connector |
| Spannungsversuergung | 12V (Typ.) |
| max. Bewäertungen | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| Modell Numm | V750DK3-Q01 |
| Écran Typ | CELL , a-Si TFT-LCD |
| Arrangement | RGB Vertical Stripe |
| Kontur (mm) | 1662.89 × 942.29 × 1.47 (H×V×D) |
| Behandlung | Antiglare (Haze 2%), Hard coating (2H), Reflection 2.0% (Typ.) |
| Kontrast Verhältnis | 4000 : 1 (Typ.) (TM) |
| Äntwert | 6.5 (Typ.)(G to G) ms |
| Aarbecht Modus | Super MVA, Normally Black, Transmissive |
| transmissivitéit | 4.8% (Typ.)(with Polarizer) |
| benotzt fir | TV Sets |
| touchscreen | Without |
