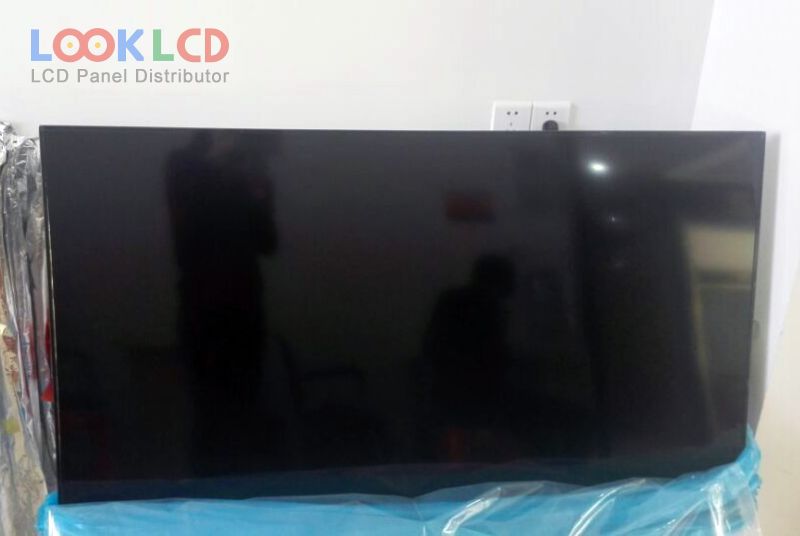

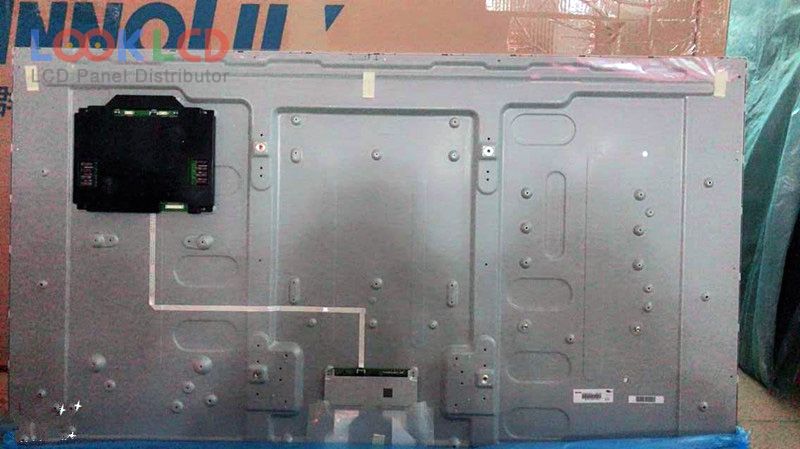

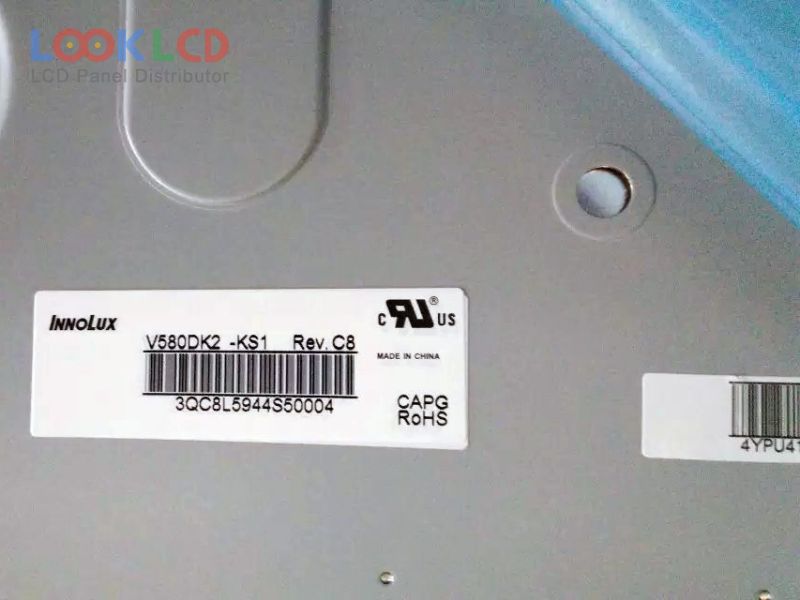

V580DK2-KS1 Rev.C8

V580DK2-KS1 Rev.C8
V580DK2-KS1 Rev.C8
V580DK2-KS1 Rev.C8
V580DK2-KS1 Rev.C8 thumb V580DK2-KS1 Rev.C8 thumb V580DK2-KS1 Rev.C8 thumb
Mark
Innolux
Gréisst
58
Applikatioun
LCTV
Opléisung
3840×2160
Zesummesetzung
LCM
Hellegkeet
400
CR
4000:1
Faarwen
1.07B
Backlight
WLED
Interface
V-by-One
In Stock
18000
Spezifikatioune

Part Number V580DK2-KS1 Rev.C8
MarkInnolux
Gréisst58
ApplikatiounLCTV
Opléisung3840×2160
ZesummesetzungLCM
Hellegkeet400
CR4000:1
Faarwen1.07B
GéigeliichtWLED
InterfaceV-by-One
Panel MarkCHIMEI INNOLUX
Panel ModellV580DK2-KS1 Rev.C8
Panel Typ a-Si TFT-LCD , LCM
Panel Gréisst58 inch
Resolutioun3840(RGB)×2160 , UHD
Display ModusSuper MVA, Normally Black, Transmissive
aktiv Beräich1270.08×721.44 mm
skizzéieren1290.3×744.7×28.6 mm
UewerflächAntiglare (Haze 1%)
Hellegkeet400 cd/m² (Typ.)
Kontrast Verhältnis4000:1 (Typ.)
weisen Faarwen1.07B (8-bit + Hi-FRC), CIE193172%
Äntwert Zäit9.5 (Typ.)(G to G)
Vue Wénkel88/88/88/88 (Typ.)(CR≥20)(L/R/U/D)
Frequenz120Hz
Lampe TypWLEDEmbedded (LED Driver)
Signal InterfaceV-by-One 8 lane, 51 pins
Input Volt12.0V (Typ.)
ApplikatiounLCTV
