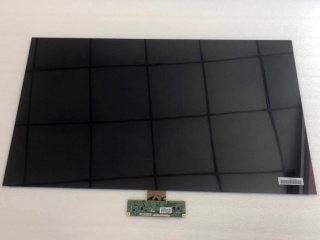

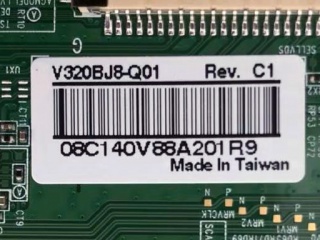

| Part Number | V320BJ8-Q01 |
| Mark | Innolux |
| Gréisst | 32.0 |
| Applikatioun | TV Sets |
| Opléisung | 1366×768 |
| Zesummesetzung | a-Si TFT-LCD, CELL |
| Hellegkeet | |
| CR | 3000:1 |
| Faarwen | 16.7M |
| Géigeliicht | No |
| Interface | LVDS |
| Mark | Innolux |
| Modell | V320BJ8-Q01 |
| diagonal Gréisst | 32.0 inch |
| Typ | a-Si TFT-LCD, CELL |
| Pixel Format | 1366×768(RGB) [WXGA] 49PPI |
| Configuratioun | RGB Horizontal Stripe |
| aktiv Beräich | 697.685(H)×392.256(V) mm |
| kontur dim. | 716.2(H)×410(V) ×1.35(D) mm |
| bezel Beräich | - |
| Behandlung | Antiglare (Haze 2%) |
| luminance | 0 cd/m² |
| Kontrast Verhältnis | 3000:1 (Typ.) (TM) |
| Vue Richtung | Symmetry |
| Äntwert Zäit | 8.5 (Typ.)(G to G) |
| Vue Wénkel | 89/89/89/89 (Typ.)(CR≥10) |
| Betribssystemer Modus | MVA, Normally Black, Transmissive |
| Plackedicke | 0.50+0.50 mm |
| Iwwerdroung | 6.2% (Typ.)(with Polarizer) |
| Ënnerstëtzung Faarf | 16.7M 70% NTSC |
| Liichtquell | No B/L |
| Gewiicht | 896g (Typ.) |
| entworf fir | TV Sets |
| Frame Taux | 60Hz |
| Touch Panel | Without |
| d-ic detail | COF Built-in 1 source chips |
| Interface Typ | LVDS (1 ch, 8-bit) , 30 pins Connector |
| Stroumversuergung | 12.0V (Typ.) |
| Ëmwelt | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
