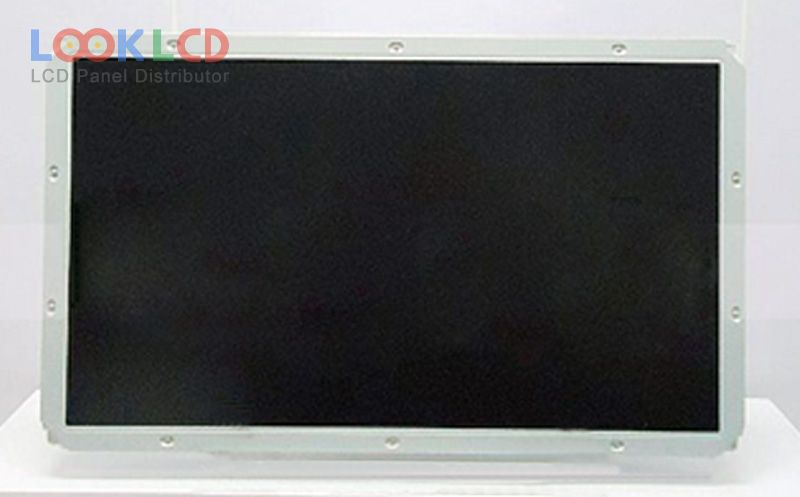

| Part Number | V260B2-L04 |
| Mark | Innolux |
| Gréisst | 26.0 |
| Applikatioun | LCTV |
| Opléisung | 1366×768 |
| Zesummesetzung | LCM |
| Hellegkeet | 450 |
| CR | 800:1 |
| Faarwen | 16.7M |
| Géigeliicht | CCFL |
| Interface | LVDS |
| Panel Mark | CMO |
| Panel Modell | V260B2-L04 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 26.0 inch |
| Resolutioun | 1366(RGB)×768 , WXGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 575.769×323.712 mm |
| skizzéieren | 626×373 mm |
| Uewerfläch | Antiglare (Haze 25%), Hard coating (3H) |
| Hellegkeet | 450 cd/m² (Typ.) |
| Kontrast Verhältnis | 800:1 (Typ.) |
| weisen Faarwen | 16.7M (6-bit + Hi-FRC), CIE193172% |
| Äntwert Zäit | 1.3/3.7 (Typ.)(Tr/Td) |
| Vue Wénkel | 80/80/80/70 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 4 pcsCCFLEmbedded (Inverter) |
| Signal Interface | LVDS (1 ch, 8-bit), 30 pins |
| Input Volt | 12.0V (Typ.) |
| Applikatioun | LCTV |
