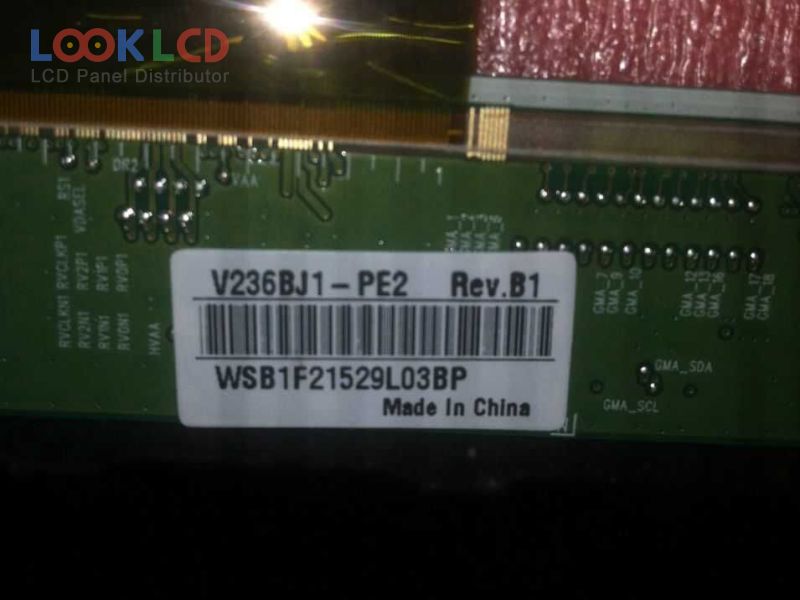

| Part Number | V236BJ1-PE2 |
| Mark | Innolux |
| Gréisst | 23.6 |
| Applikatioun | LCTV |
| Opléisung | 1366×768 |
| Zesummesetzung | CELL |
| Hellegkeet | 0 |
| CR | 3000:1 |
| Faarwen | 16.7M |
| Géigeliicht | No B/L |
| Interface | LVDS |
| Panel Mark | INNOLUX |
| Panel Modell | V236BJ1-PE2 |
| Panel Typ | a-Si TFT-LCD , CELL |
| Panel Gréisst | 23.6 inch |
| Resolutioun | 1366(RGB)×768 , WXGA |
| Display Modus | MVA, Normally Black, Transmissive |
| aktiv Beräich | 521.471×293.184 mm |
| skizzéieren | 535.06×307.34 mm |
| Uewerfläch | Antiglare (Haze 1%) |
| Glas Déift | 0.50+0.50 mm |
| transmissivitéit | 5.6% (Typ.)(with Polarizer) |
| Kontrast Verhältnis | 3000:1 (Typ.) |
| weisen Faarwen | 16.7M (8-bit) |
| Äntwert Zäit | 8.5 (Typ.)(G to G) |
| Vue Wénkel | 88/88/88/88 (Typ.)(CR≥20)(L/R/U/D) |
| Frequenz | 60Hz |
| Signal Interface | LVDS (1 ch, 8-bit), 30 pins |
| Input Volt | 12.0V (Typ.) |
| Applikatioun | LCTV |
