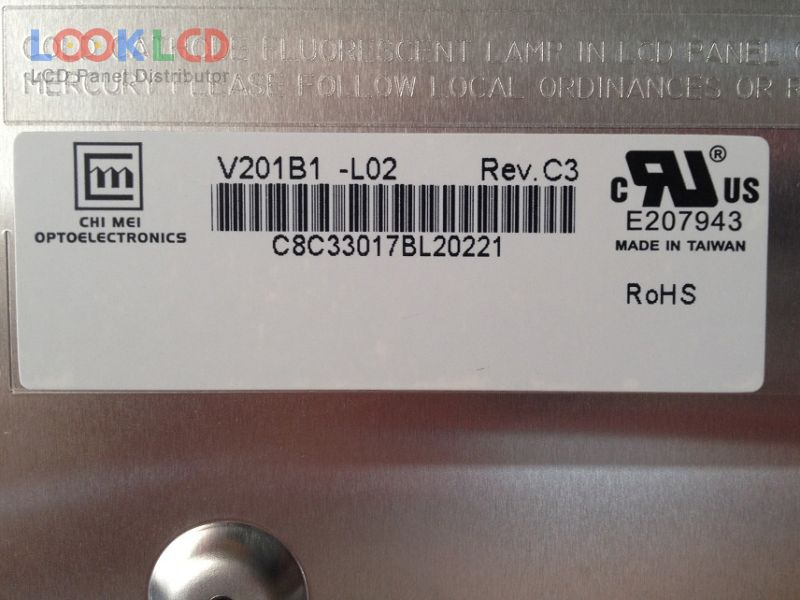

| Part Number | V201B1-L02 |
| Mark | Innolux |
| Gréisst | 20.1 |
| Applikatioun | LCTV |
| Opléisung | 1366×768 |
| Zesummesetzung | LCM |
| Hellegkeet | 530 |
| CR | 1000:1 |
| Faarwen | 16.2M |
| Géigeliicht | CCFL |
| Interface | LVDS |
| Panel Mark | CMO |
| Panel Modell | V201B1-L02 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 20.1 inch |
| Resolutioun | 1366(RGB)×768 , WXGA |
| Display Modus | Super MVA, Normally Black, Transmissive |
| aktiv Beräich | 444.633×249.984 mm |
| skizzéieren | 473.3×276.7 mm |
| Uewerfläch | |
| Hellegkeet | 530 cd/m² (Typ.) |
| Kontrast Verhältnis | 1000:1 (Typ.) |
| weisen Faarwen | 16.2M (6-bit + FRC), CIE193175% |
| Äntwert Zäit | 8 (Typ.)(G to G) |
| Vue Wénkel | 88/88/88/88 (Typ.)(CR≥20)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 5 pcsCCFLWithout Driver |
| Signal Interface | LVDS (1 ch, 8-bit), 30 pins |
| Input Volt | 5.0V (Typ.) |
| rohs: | |
| Applikatioun | LCTV |
| LC320WXN-SCG1 | LG Display | 31.5 | 1366×768 |
| LC370EUN-SEM2 | LG Display | 36.5 | 1920×1080 |
| LC420DUE-SFU2 | LG Display | 42 | 1920×1080 |
| LC420EUE-SEM1 | LG Display | 42 | 1920×1080 |
| LC420EUN-SEM1 | LG Display | 42 | 1920×1080 |
| LC470EUE-SER1 | LG Display | 47 | 1920×1080 |
| ST4851D01-2 | CSOT | 49 | 3840×2160 |
| ST5461B05-2 | CSOT | 55 | 1920×1080 |
| T315HW07 VC | AUO | 31.5 | 1920×1080 |
| T576DC01 V0 | AUO | 58 | 2560×1080 |
