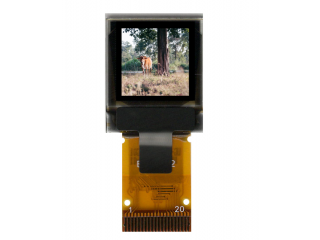

| Part Number | UG-6464TDDBG01 |
| Mark | WiseChip |
| Gréisst | 0.60 |
| Applikatioun | - |
| Opléisung | 64×64 |
| Zesummesetzung | PM-OLED , OLED |
| Hellegkeet | |
| CR | 10000:1 |
| Faarwen | 65K |
| Géigeliicht | self |
| Interface | 4-wire |
| Panel Mark | WiseChip |
| Panel Gréisst | 0.60" |
| Resolutioun | 64(RGB)×64, 151PPI |
| Affichage Beräich | 10.73(W)×10.73(H) mm |
| Kontur Gréisst | 15(W)×17.5(H) ×1.3(D) mm |
| Hellegkeet | 200 cd/m² (Typ.) |
| Vue Wénkel | - |
| beschte Vue op | Symmetry |
| weisen Faarwen | 65K 60% NTSC |
| Frequenz | - |
| Chauffeur ic | COG Built-in SSD1357 |
| Panel Gewiicht | 0.66±0.06g |
| Signal Interface | 4-wire SPI , 20 pins FPC |
| Input Volt | 3.0/12.0V (Typ.)(VDD/VCC) |
| Ëmwelt | Operating Temp.: -40 ~ 70 °C ; Storage Temp.: -40 ~ 85 °C |
| Panel Modell | UG-6464TDDBG01 |
| Panel Typ | PM-OLED , OLED |
| Pixel Format | RGB Vertical Stripe |
| bezel Ouverture | 11.73(W)×11.73(H) mm |
| Uewerfläch | - |
| Kontrast Verhältnis | 10000:1 (Typ.) (TM) |
| Display Modus | - |
| Äntwert Zäit | - |
| Lampe Typ | self , 10K hours |
| Touchscreens | Without |
| Applikatioun |
