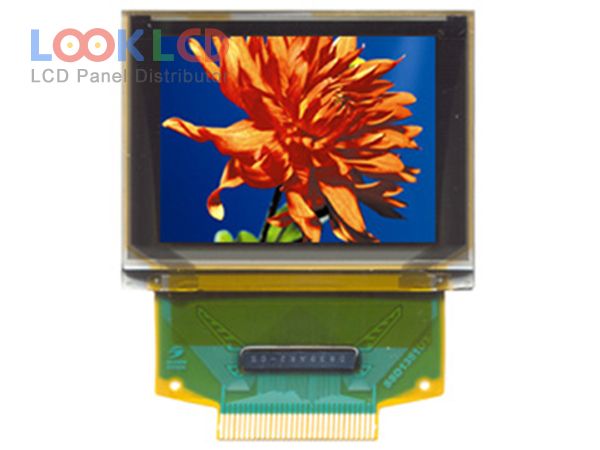

| Part Number | UG-2896GDEAF11 |
| Mark | WiseChip |
| Gréisst | 1.3 |
| Applikatioun | IA |
| Opléisung | 128×96 |
| Zesummesetzung | OLED |
| Hellegkeet | 100 |
| CR | 2000:1 |
| Faarwen | 262K |
| Géigeliicht | self |
| Interface | CPU/SPI |
| Panel Mark | Univision |
| Panel Modell | UG-2896GDEAF11 |
| Panel Typ | PM-OLED , OLED |
| Panel Gréisst | 1.3 inch |
| Resolutioun | 128(RGB)×96 |
| aktiv Beräich | 25.708×19.28 mm |
| skizzéieren | 33.7×26.9×1.7 mm |
| Uewerfläch | |
| Hellegkeet | 100 cd/m² (Typ.) |
| Kontrast Verhältnis | 2000 : 1 (Typ.) |
| weisen Faarwen | 262K (6-bit) |
| Vue Wénkel | 80/80/80/80 (Min.)(L/R/U/D) |
| Chauffeur ic | COF Built-in SSD1351 |
| Signal Interface | 8-bit 6800/8080 parallel, 3/4-wire SPI, 30 pins |
| Input Volt | 2.8/12V (Typ.)(VCI/VCC) |
| rohs: | |
| Applikatioun | IA |
| EL640.400-C3 FRA | Lumineq | 9.1 | 640×400 |
| G084SN05 V3 | AUO | 8.4 | 800×600 |
| G084SN05 V8 | AUO | 8.4 | 800×600 |
| LTA057A341F | TOSHIBA | 5.7 | 320×240 |
| LTA104D183F | TOSHIBA | 10.4 | 800×600 |
| LTD121C33S | TOSHIBA | 12.1 | 800×600 |
| LTM09C016K | TOSHIBA | 9.4 | 640×480 |
| M150GNN2 R1 | IVO | 15.0 | 1024×768 |
| NL6448BC18-01F | NLT | 5.7 | 640×480 |
| NL6448BC33-21 | NLT | 10.4 | 640×480 |
