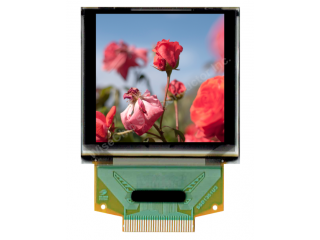

| Part Number | UG-2828GDEDF15 |
| Mark | Univision |
| Gréisst | 1.5 |
| Applikatioun | Mobile Phone Handhel |
| Opléisung | 128×128 |
| Zesummesetzung | PM-OLED, OLED |
| Hellegkeet | |
| CR | 2000:1 |
| Faarwen | 262K |
| Géigeliicht | self |
| Interface | 8-bit |
| Mark | Univision |
| Modell | UG-2828GDEDF15 |
| diagonal Gréisst | 1.5 inch |
| Typ | PM-OLED, OLED |
| Pixel Format | 128(RGB)×128 121PPI |
| Configuratioun | RGB Vertical Stripe |
| aktiv Beräich | 26.855(H)×26.864(V) mm |
| kontur dim. | 33.8(H)×34(V) ×1.7(D) mm |
| bezel Beräich | 28.855(H)×28.864(V) mm |
| Behandlung | - |
| luminance | 90 cd/m² (Typ.) |
| Kontrast Verhältnis | 2000:1 (Typ.) (TM) |
| Vue Richtung | Symmetry |
| Äntwert Zäit | - |
| Vue Wénkel | 80/80/80/80 (Min.) |
| Betribssystemer Modus | - |
| Ënnerstëtzung Faarf | 262K |
| Liichtquell | self , 20K hours |
| Gewiicht | 3.80g (Typ.) |
| entworf fir | Mobile Phone Handheld & PDA |
| Frame Taux | - |
| Touch Panel | Without |
| d-ic detail | COF Built-in SSD1351 |
| Interface Typ | 8-bit 6800/8080 parallel, 3/4-wire SPI , 30 pins FPC |
| Stroumversuergung | 2.8/2.5/1.8/13V (Typ.)(VCI/VDD/VDDIO/VCC) |
| Ëmwelt | Operating Temperature: -30 ~ 70 °C ; Storage Temperature: -40 ~ 80 °C |
