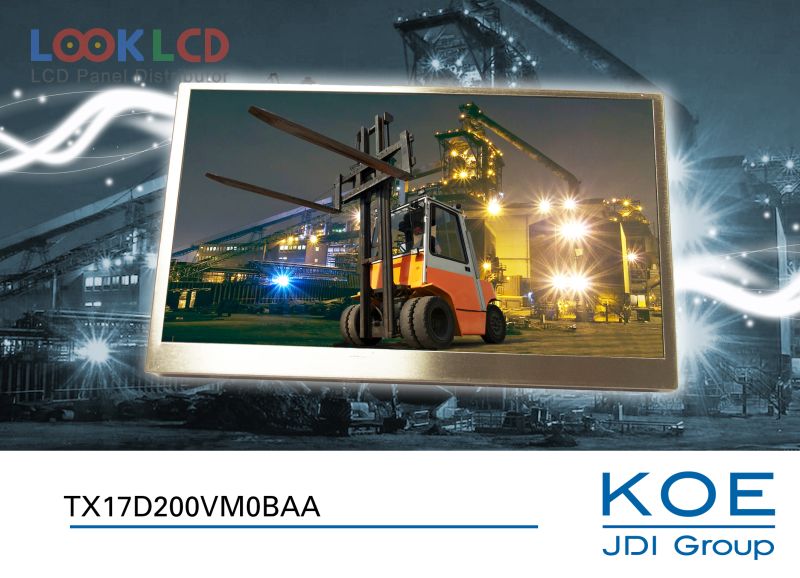

| Part Number | TX17D200VM0BAA |
| Mark | KOE |
| Gréisst | 6.5 |
| Applikatioun | IA |
| Opléisung | 800×480 |
| Zesummesetzung | LCM |
| Hellegkeet | 700 |
| CR | 600:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | TTL |
| Panel Mark | KOE |
| Panel Modell | TX17D200VM0BAA |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 6.5 inch |
| Resolutioun | 800(RGB)×480 , WVGA |
| Display Modus | IPS, Normally Black, Transmissive |
| aktiv Beräich | 144×78.24 mm |
| skizzéieren | 154.8×92.7×10.7 mm |
| Uewerfläch | |
| Hellegkeet | 700 cd/m² (Typ.) |
| Kontrast Verhältnis | 600:1 (Typ.) |
| weisen Faarwen | 262K (6-bit), CIE193156% |
| Äntwert Zäit | 45 (Max.)(Tr+Td) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 3S5PWLEDEmbedded (LED Driver) |
| Signal Interface | CMOS (1 ch, 6-bit), 20 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | IA |
| C065GW01 V0 | AUO | 6.5 | 400×234 |
| C065VL01 V0 | AUO | 6.5 | 800×480 |
| DJ065NA-01C | Innolux | 6.5 | |
| LB065WQ3-TD02 | LG Display | 6.5 | 400×240 |
| LQ065T5GG63 | SHARP | 6.5 | 400×234 |
| LQ065Y5DG01 | SHARP | 6.5 | 800×480 |
| LTA065B0F0F | TOSHIBA | 6.5 | 800×480 |
| NL6448BC20-30F | NLT | 6.5 | 640×480 |
| T-51750GD065J-FW-ADN | Kyocera | 6.5 | 640×480 |
| TX17D200VM0BAA | KOE | 6.5 | 800×480 |
| AA121XH01 | Mitsubishi | 12.1 | 1024×768 |
| DLC0570BDG-3 | Other | 5.7 | 640×480 |
| G084SN03 V1 | AUO | 8.4 | 800×600 |
| G150XTN01.1 | AUO | 15.0 | 1024×768 |
| G240UAN01.0 | AUO | 24.0 | 1920×1200 |
| KCS072VG1MB-G42 | Kyocera | 7.2 | 640×480 |
| LC064N1 | LG Display | 6.4 | 640×480 |
| LS037V3DX01 | SHARP | 3.7 | 640×480 |
| M101GWN9 R2 | IVO | 10.1 | 1024×600 |
| TX18D30VM2FAA | KOE | 7.0 | 800×480 |
