| Part Number | TV080WXM-LL3 |
| Mark | BOE |
| Gréisst | 8.0 |
| Applikatioun | Pad & Tablet |
| Opléisung | 800×1280 |
| Zesummesetzung | a-Si TFT-LCD, Assemb |
| Hellegkeet | |
| CR | 1000:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | MIPI |
| Mark | BOE |
| Modell | TV080WXM-LL3 |
| diagonal Gréisst | 8.0 inch |
| Typ | a-Si TFT-LCD, Assembly |
| Pixel Format | 800(RGB)×1280 [WXGA] 188PPI |
| Configuratioun | RGB Vertical Stripe |
| aktiv Beräich | 107.64(H)×172.224(V) mm |
| kontur dim. | 116.9(H)×194.17(V) ×5.35(D) mm |
| bezel Beräich | - |
| Behandlung | Clear, Hard coating |
| luminance | 350 cd/m² (Typ.) |
| Kontrast Verhältnis | 1000:1 (Typ.) (TM) |
| Vue Richtung | Symmetry |
| Äntwert Zäit | 30(Typ.)(Tr+Td) |
| Vue Wénkel | 80/80/80/80 (Typ.)(CR≥10) |
| Betribssystemer Modus | ADS, Normally Black, Transmissive |
| Ënnerstëtzung Faarf | 16.7M 60% NTSC |
| Liichtquell | WLED [5S4P] , W/O Driver |
| Gewiicht | 150g (Typ.) |
| entworf fir | Pad & Tablet |
| Frame Taux | 60Hz |
| Touch Panel | PCAP |

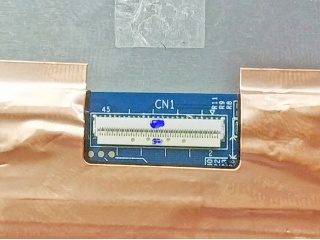

| Interface Typ | MIPI (4 data lanes) , 45 pins Connector |
| Stroumversuergung | 1.8/6.0/-6.0/19/-11V (Typ.)(VDDI/AVDD/AVEE/VGH/VGL) |
| Ëmwelt | Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -30 ~ 70 °C |
| BP080WX7-100 | BOE | 8.0 | 1280×800 |
| C080VW02 V0 | AUO | 8.0 | 800×480 |
| CLAA080LG02AW | CPT | 8.0 | 800×480 |
| CLAA080NA01 CW | CPT | 8.0 | 1024×600 |
| L5F30614T65 | SANYO | 8.0 | 800×480 |
| LA080WV8-SL01 | LG Display | 8.0 | 800×480 |
| LB080WV3-A3 | LG Display | 8.0 | 800×480 |
| LB080WV4-A1 | LG Display | 8.0 | 800×480 |
| LQ080Y5CGQ1 | SHARP | 8.0 | 800×480 |
| TV080WXM-NL0 | BOE | 8.0 | 800×1280 |
