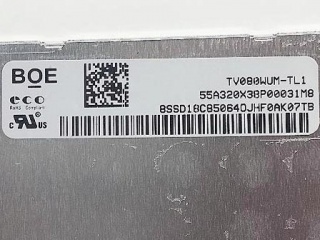

| Part Number | TV080WUM-TL1 |
| Mark | BOE |
| Gréisst | 8.0 |
| Applikatioun | Pad & Tablet |
| Opléisung | 1200×1920 |
| Zesummesetzung | a-Si TFT-LCD, Assemb |
| Hellegkeet | |
| CR | 900:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | |
| Mark | BOE |
| Modell | TV080WUM-TL1 |
| diagonal Gréisst | 8.0 inch |
| Typ | a-Si TFT-LCD, Assembly |
| Pixel Format | 1200(RGB)×1920 [WUXGA] 283PPI |
| Configuratioun | RGB Vertical Stripe |
| aktiv Beräich | 107.64(H)×172.224(V) mm |
| kontur dim. | 117.7(H)×193.84(V) ×5.5(D) mm |
| bezel Beräich | - |
| Behandlung | Hard coating |
| luminance | 350 cd/m² (Typ.) |
| Kontrast Verhältnis | 900:1 (Typ.) (TM) |
| Vue Richtung | Symmetry |
| Äntwert Zäit | 30 (Typ.)(Tr+Td) |
| Vue Wénkel | 80/80/80/80 (Typ.)(CR≥10) |
| Betribssystemer Modus | HADS, Normally Black, Transmissive |
| Ënnerstëtzung Faarf | 16.7M 58% NTSC |
| Liichtquell | WLED [6S4P] , W/O Driver |
| Gewiicht | 155g (Max.) |
| entworf fir | Pad & Tablet |
| Frame Taux | 60Hz |
| Touch Panel | On-Cell Touch |
| Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -30 ~ 70 °C |
