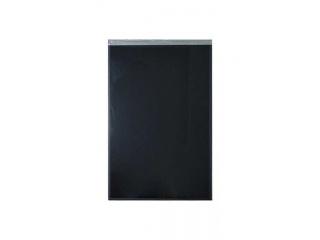

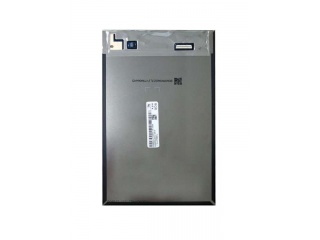

| Part Number | TV080WUM-NL1 |
| Mark | BOE |
| Gréisst | 8.0 |
| Applikatioun | Pad & Tablet |
| Opléisung | 1200×1920 |
| Zesummesetzung | LCM , a-Si TFT-LCD |
| Hellegkeet | |
| CR | 1000:1 |
| Faarwen | 16.7M |
| Géigeliicht | 8S3P WLED , 15K hours , No Driver |
| Interface | MIPI |
| Fabrikant beschwéiert | BOE |
| Modell Numm | TV080WUM-NL1 |
| Écran Gréisst | 8.0 inch |
| Écran Typ | LCM , a-Si TFT-LCD |
| Pixel Zuel | 1200(RGB)×1920 (WUXGA) 283PPI |
| Arrangement | RGB Vertical Stripe |
| aktiv Beräich (mm) | 107.64 × 172.224 (H×V) |
| Kontur (mm) | 114.6 × 183.75 × 3.75 (H×V×D) |
| Bezel Beräich (mm) | - |
| Behandlung | Hard coating |
| luminance | 400 cd/m² (Typ.) |
| Kontrast Verhältnis | 1000 : 1 (Typ.) (TM) |
| Vue Wénkel | 80/80/80/80 (Typ.)(CR≥10) |
| Äntwert | 25 (Typ.)(Tr+Td) ms |
| gutt Vue op | Symmetry |
| Aarbecht Modus | ADS, Normally Black, Transmissive |
| Faarfdéift | 16.7M 63% NTSC |
| mass | 85.0g (Max.) |
| benotzt fir | Pad & Tablet |
| Erfrëschungsrate | 60Hz |
| touchscreen | Without |
| Signal Typ | MIPI (4 data lanes) , 45 pins Connector |
| Spannungsversuergung | 3.3V (Typ.) |
| max. Bewäertungen | Storage Temp.: -30 ~ 70 °C Operating Temp.: -20 ~ 60 °C |
