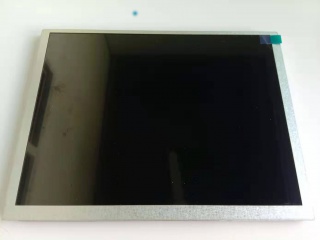

| Part Number | TM104TDGP10 |
| Mark | TIANMA |
| Gréisst | 10.4 |
| Applikatioun | Industrial |
| Opléisung | 1024×768 |
| Zesummesetzung | a-Si TFT-LCD , LCM |
| Hellegkeet | |
| CR | 1200:1 |
| Faarwen | 262K/16.7M |
| Géigeliicht | 8S4P |
| Interface | LVDS |
| Panel Mark | TIANMA |
| Panel Gréisst | 10.4" |
| Resolutioun | 1024(RGB)×768, XGA, 123PPI |
| Affichage Beräich | 210.432(W)×157.824(H) mm |
| Kontur Gréisst | 230(W)×175.8(H) ×9.06(D) mm |
| Hellegkeet | 450 cd/m² (Typ.) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10) |
| beschte Vue op | Symmetry |
| weisen Faarwen | 262K/16.7M 50% NTSC |
| Frequenz | 60Hz |
| Panel Gewiicht | 430g (Typ.) |

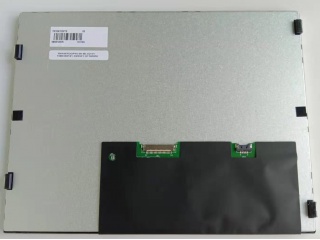

| Signal Interface | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Input Volt | 3.3V (Typ.) |
| Ëmwelt | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |

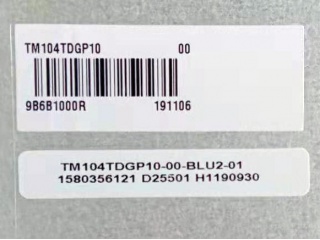

| Panel Modell | TM104TDGP10 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Pixel Format | RGB Vertical Stripe |
| bezel Ouverture | 213.43(W)×160.82(H) mm |
| Uewerfläch | Antiglare |
| Kontrast Verhältnis | 1200:1 (Typ.) (TM) |
| Display Modus | SFT, Normally Black, Transmissive |
| Äntwert Zäit | 35 (Typ.)(Tr+Td) |
| Lampe Typ | 8S4P WLED , With LED Driver |
| Touchscreens | Without |
| Applikatioun | Industrial |
