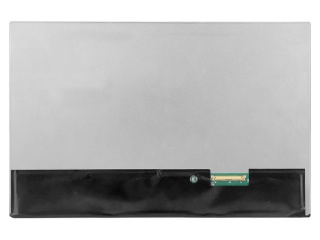

| Part Number | TM101JDHG38 |
| Mark | TIANMA |
| Gréisst | 10.1 |
| Applikatioun | Industrial Medical I |
| Opléisung | 1280×800 |
| Zesummesetzung | LCM, a-Si TFT-LCD |
| Hellegkeet | |
| CR | 800:1 |
| Faarwen | 262K/16.7M |
| Géigeliicht | 6S5P WLED , 30K hours , With LED Driver |
| Interface | LVDS |
| Fabrikant beschwéiert | TIANMA |
| Modell Numm | TM101JDHG38 |
| Écran Gréisst | 10.1 inch |
| Écran Typ | LCM, a-Si TFT-LCD |
| Pixel Zuel | 1280(RGB)×800 (WXGA) 149PPI |
| Arrangement | RGB Vertical Stripe |
| aktiv Beräich (mm) | 216.96 × 135.6 (H×V) |
| Kontur (mm) | 231.22 × 150.6 × 6.6 (H×V×D) |
| Bezel Beräich (mm) | 219.96 × 138.6 (H×V) |
| Behandlung | Hard coating |
| luminance | 400 cd/m² (Typ.) |
| Kontrast Verhältnis | 800 : 1 (Typ.) (TM) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10) |
| Äntwert | 25 (Typ.)(Tr+Td) ms |
| gutt Vue op | Symmetry |
| Aarbecht Modus | SFT, Normally Black, Transmissive |
| Faarfdéift | 262K/16.7M 50% NTSC |
| mass | 276g |
| benotzt fir | Industrial Medical Imaging VOIP Phone |
| Erfrëschungsrate | 60Hz |
| touchscreen | Without |
| Signal Typ | LVDS (1 ch, 6/8-bit) , Connector 40 pins |
| Spannungsversuergung | 3.3V (Typ.) |
| max. Bewäertungen | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
